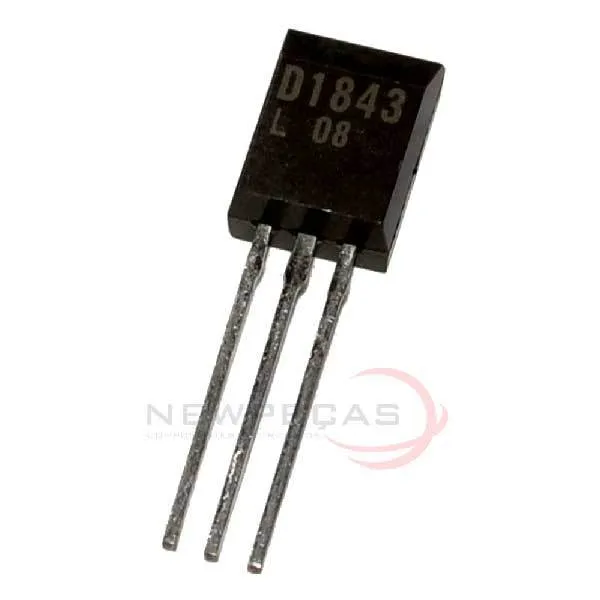

N-DARL+D 60V 1A 1W D-38
Type Designator: 2SD1843
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 1
Maximum collector-base voltage |Ucb|, V: 60
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 0
Maximum collector current |Ic max|, A: 1
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 10000
Noise Figure, dB: -
Package of 2SD1843 transistor: D-38
