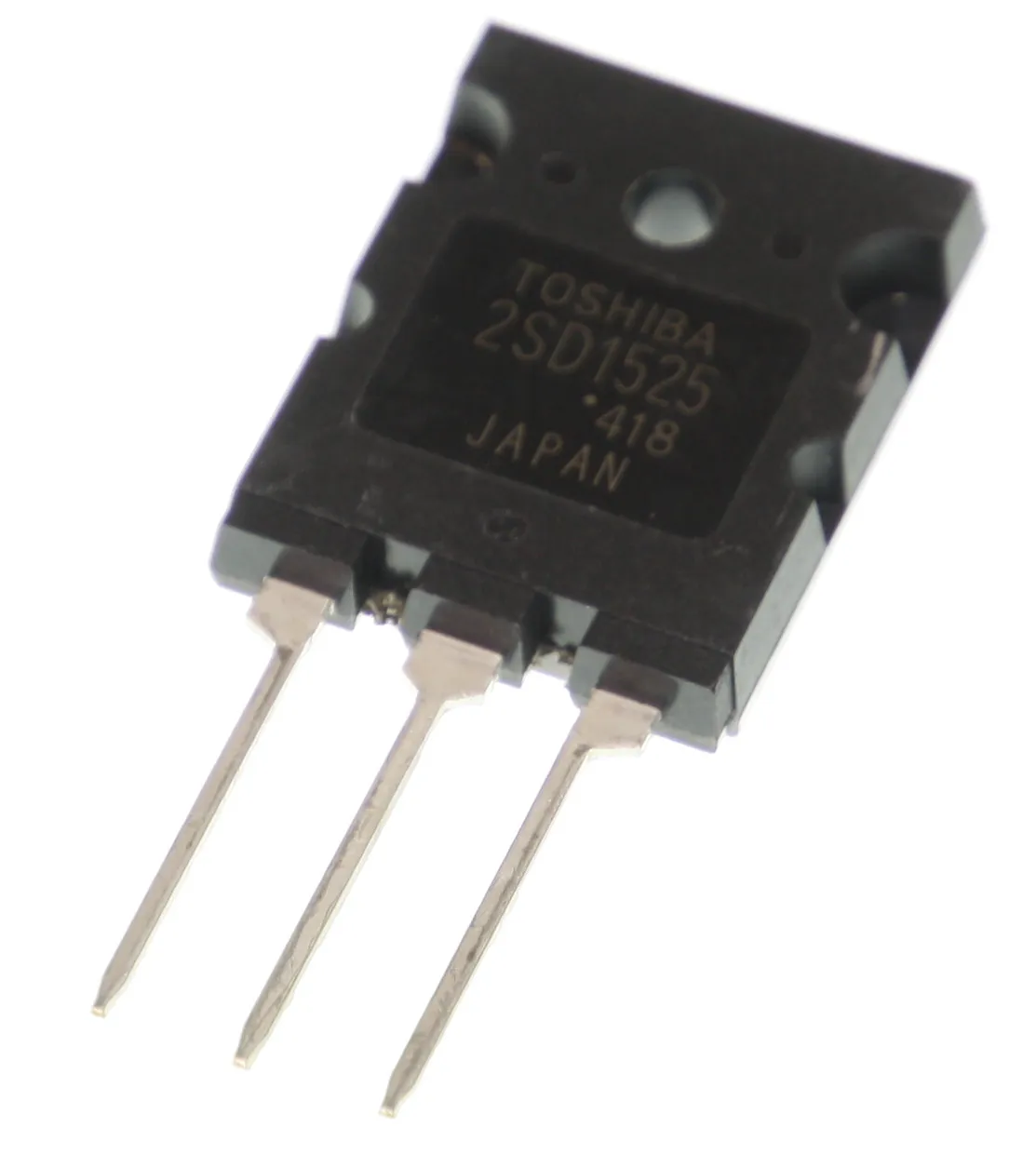

N-DARL+D 100V 30A 150W TO-3PBL
Type Designator: 2SD1525
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 150
Maximum collector-base voltage |Ucb|, V: 100
Maximum collector-emitter voltage |Uce|, V: 100
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 30
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 10
Collector capacitance (Cc), pF: 500
Forward current transfer ratio (hFE), min: 2000
Noise Figure, dB: -
Package of 2SD1525 transistor: TO-3PBL
N-DARL+D 100V 30A 150W TO-3PBL
Type Designator: 2SD1525
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 150
Maximum collector-base voltage |Ucb|, V: 100
Maximum collector-emitter voltage |Uce|, V: 100
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 30
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 10
Collector capacitance (Cc), pF: 500
Forward current transfer ratio (hFE), min: 2000
Noise Figure, dB: -
Package of 2SD1525 transistor: TO-3PBL
