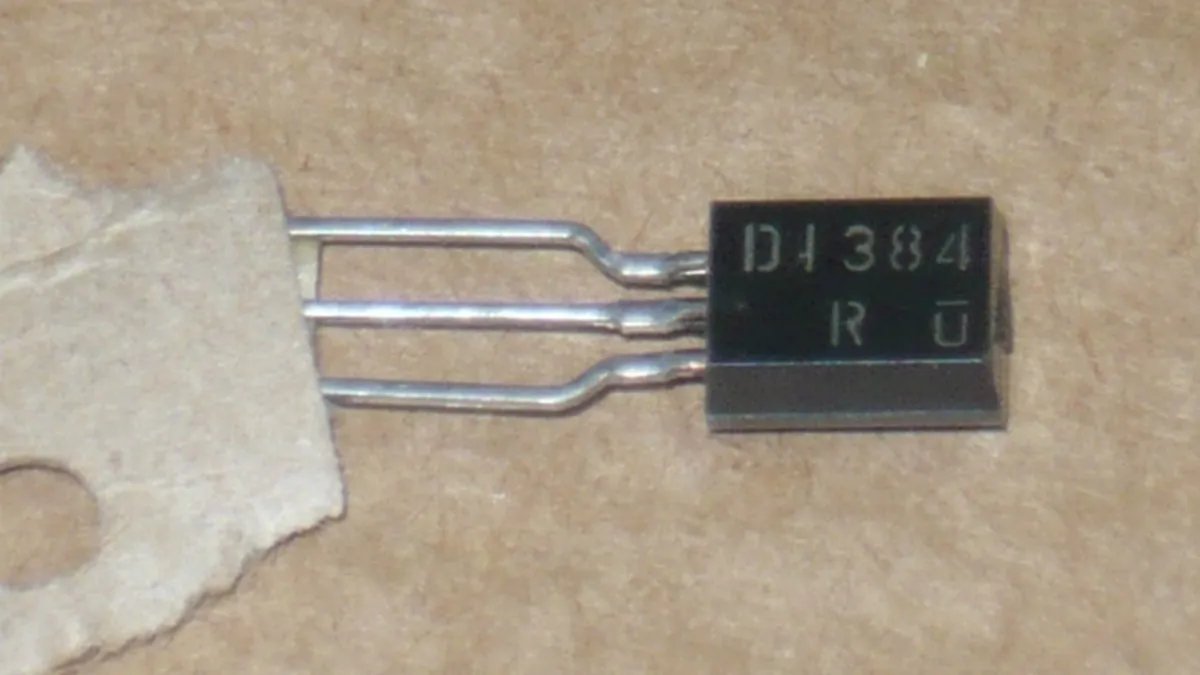

SI-N 40V 2A 0,75W 100MHz TO-92L
Type Designator: 2SD1384
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.75
Maximum collector-base voltage |Ucb|, V: 40
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 0
Maximum collector current |Ic max|, A: 2
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 100
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 60
Noise Figure, dB: -
Package of 2SD1384 transistor: TO92L
