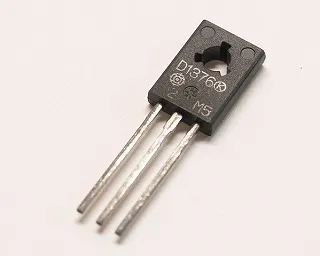

N-DARL+D 120V 1.5A 20W TO-126
Type Designator: 2SD1376K
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 20
Maximum collector-base voltage |Ucb|, V: 120
Maximum collector-emitter voltage |Uce|, V: 120
Maximum emitter-base voltage |Ueb|, V: 7
Maximum collector current |Ic max|, A: 1.5
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 15000
Noise Figure, dB: -
Package of 2SD1376K transistor: TO-126
