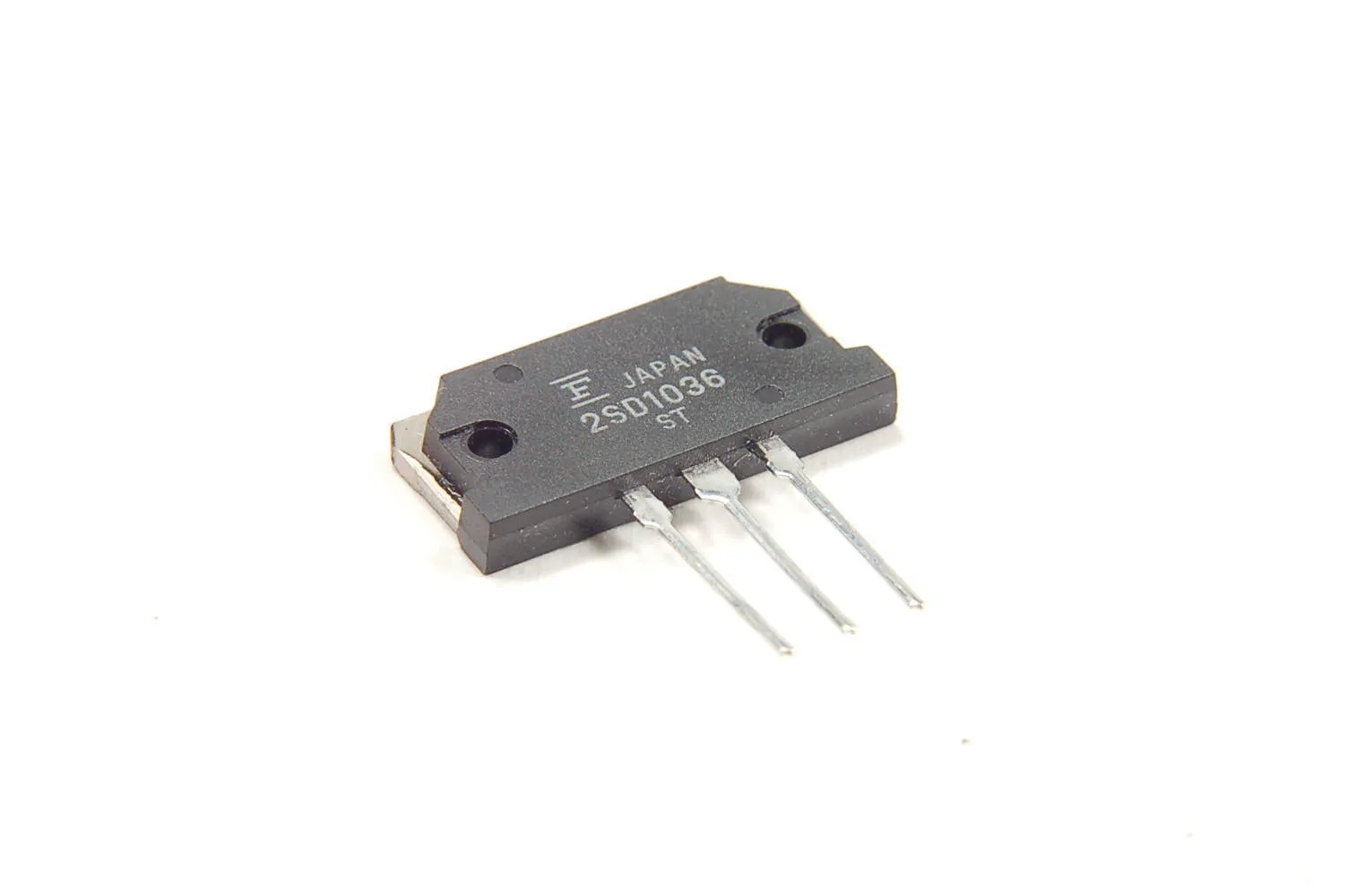

SI-N 150/120V 15A 150W XM-20
Type Designator: 2SD1036
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 150
Maximum collector-base voltage |Ucb|, V: 150
Maximum collector-emitter voltage |Uce|, V: 120
Maximum emitter-base voltage |Ueb|, V: 100
Maximum collector current |Ic max|, A: 15
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 1
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 35
Noise Figure, dB: -
Package of 2SD1036 transistor: XM20
