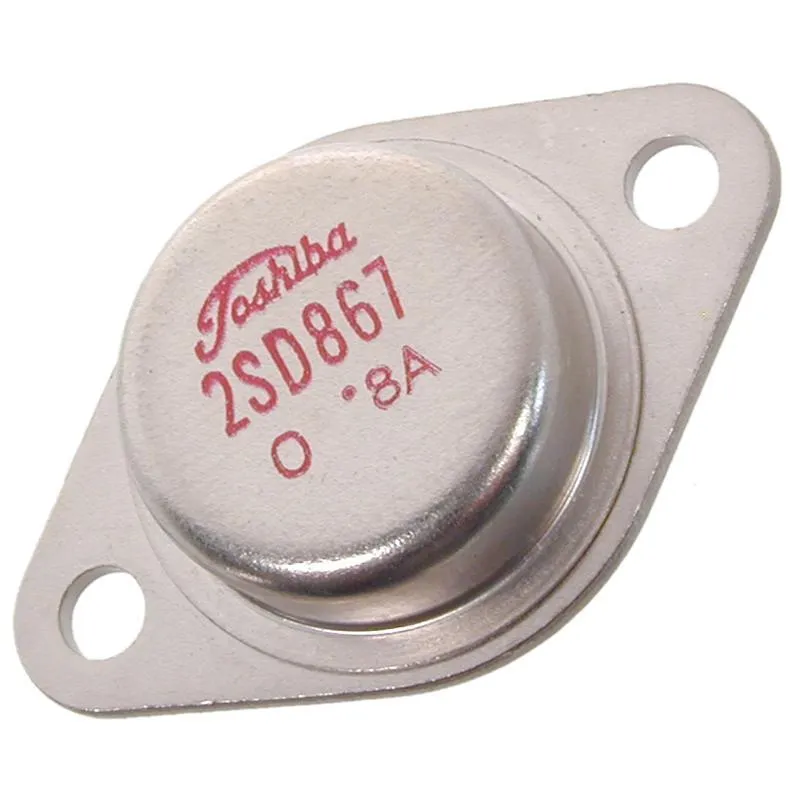

SI-N 130V 10A 100W 3MHz TO-3
Type Designator: 2SD867
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 100
Maximum collector-base voltage |Ucb|, V: 130
Maximum collector-emitter voltage |Uce|, V: 110
Maximum emitter-base voltage |Ueb|, V: 7
Maximum collector current |Ic max|, A: 10
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 3
Collector capacitance (Cc), pF: 200
Forward current transfer ratio (hFE), min: 50
Noise Figure, dB: -
Package of 2SD867 transistor: TO3
