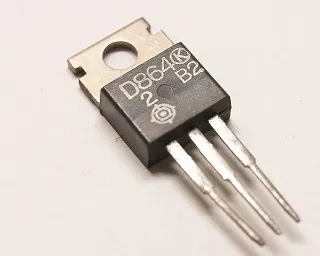

SI-N 120V 3A 30W TO-220
Type Designator: 2SD864K
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 30
Maximum collector-base voltage |Ucb|, V: 120
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 7
Maximum collector current |Ic max|, A: 3
Maximum junction temperature (Tj), °C: 175
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 1
Noise Figure, dB: -
Package of 2SD864K transistor: TO220
