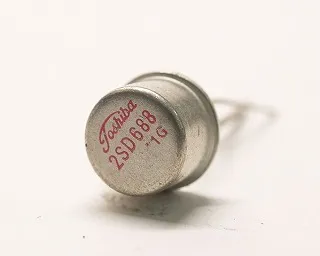

SI-N 100V 1,5A 8W TO-39
Type Designator: 2SD688
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 8
Maximum collector-base voltage |Ucb|, V: 100
Maximum collector-emitter voltage |Uce|, V: 100
Maximum emitter-base voltage |Ueb|, V: 10
Maximum collector current |Ic max|, A: 1.5
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 4000
Noise Figure, dB: -

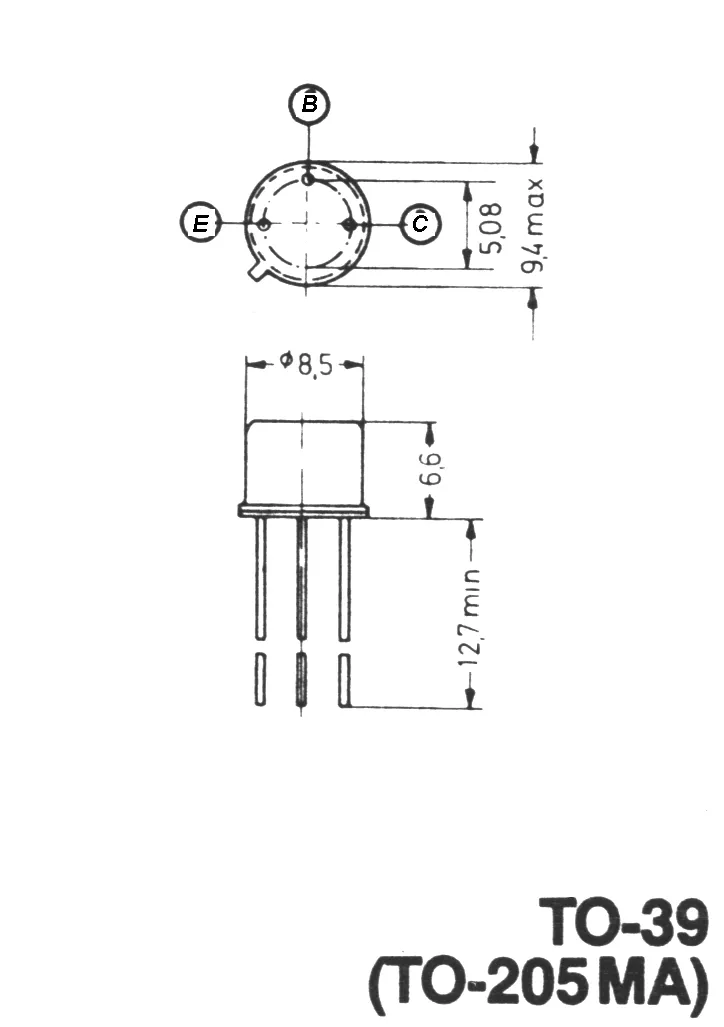

Package of 2SD688 transistor: TO39-1
