SI-N 200V 2A 30W TO-220
Type Designator: 2SD478
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 30
Maximum collector-base voltage |Ucb|, V: 200
Maximum collector-emitter voltage |Uce|, V: 150
Maximum emitter-base voltage |Ueb|, V: 6
Maximum collector current |Ic max|, A: 2
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 60
Noise Figure, dB: -

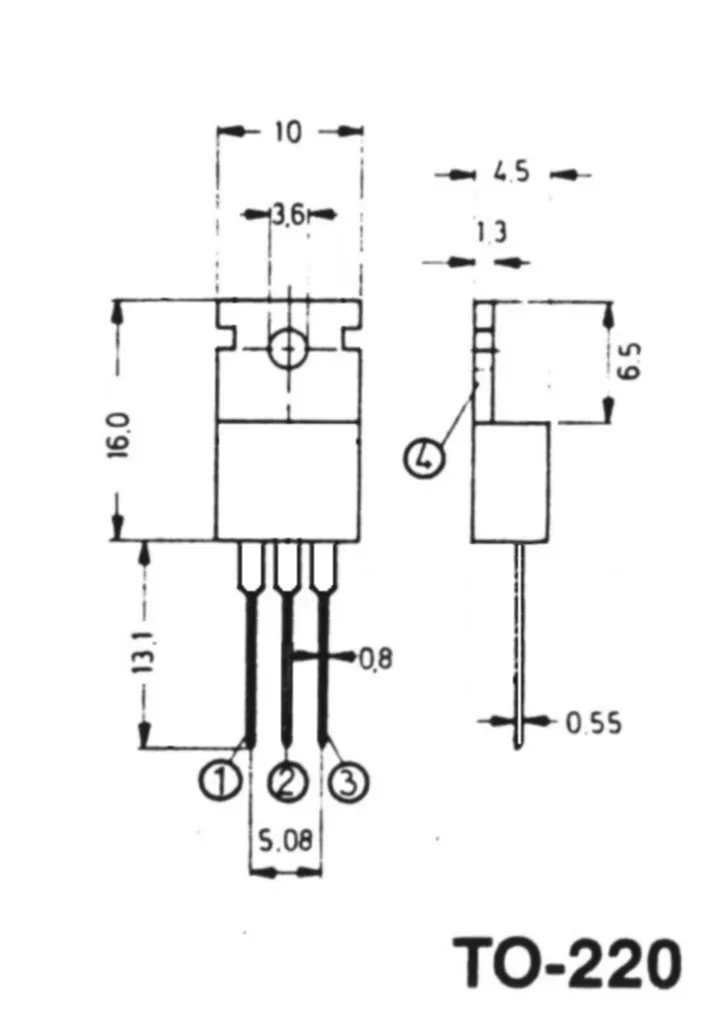

Package of 2SD478 transistor: TO220
