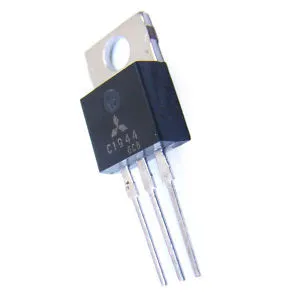

NPN 80V 6A 20W SOT-220
Type Designator: 2SC1944
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 20
Maximum collector-base voltage |Ucb|, V: 80
Maximum collector-emitter voltage |Uce|, V: 40
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 6
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 75
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 10
Noise Figure, dB: -
Package of 2SC1944 transistor: TO220
