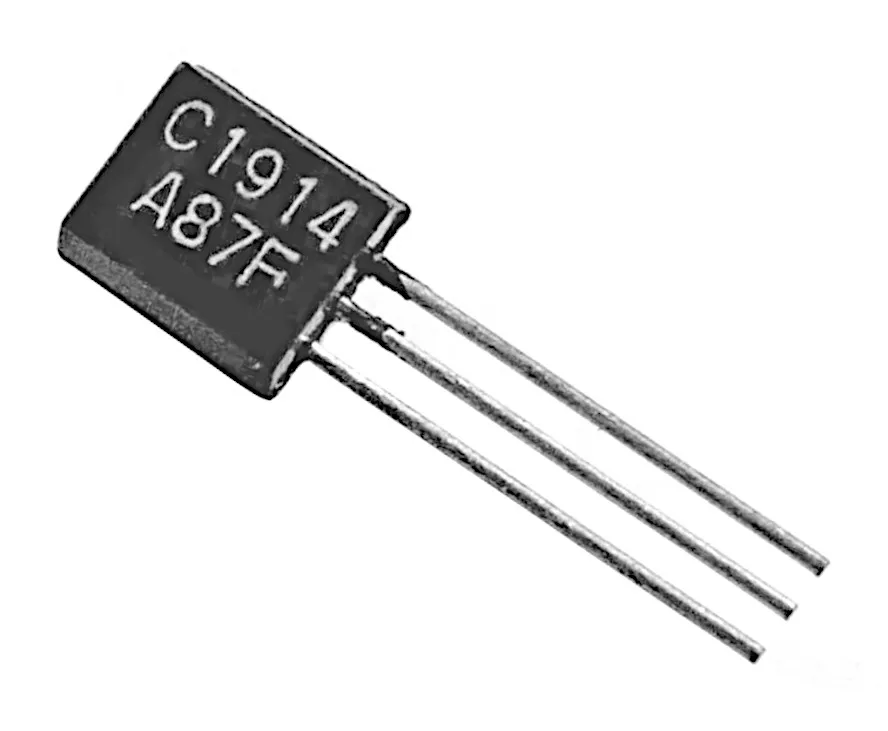

NPN 90V 0,05A 0,2W TO-92

Name: NPN 90V 0,05A 0,2W TO-92
SKU: 127435
Price: 186.25 DKK
Availability: InStock

Varenummer: 127-435

Varekode: 2SC1914

4 stk. på lager

Bestil nu for afsendelse i morgen

Yderligere kan skaffes fredag d. 20/11

Vis lignende produkter i kategorien "2SC.."

Type Designator: 2SC1914

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 0.2

Maximum collector-base voltage |Ucb|, V: 90

Maximum collector-emitter voltage |Uce|, V: 90

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 0.05

Maximum junction temperature (Tj), °C: 125

Transition frequency (ft), MHz: 75

Collector capacitance (Cc), pF: 1.8

Forward current transfer ratio (hFE), min: 250

Noise Figure, dB: -

Package of 2SC1914 transistor: TO92

Inkl. moms

Kr. 186,25

NPN 90V 0,05A 0,2W TO-92

127-435

/ 2SC1914

4 stk. på lager

Bestil nu for afsendelse i morgen

Ved bestilling nu, får vi dem hjem fredag d. 20/11

Type Designator: 2SC1914

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 0.2

Maximum collector-base voltage |Ucb|, V: 90

Maximum collector-emitter voltage |Uce|, V: 90

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 0.05

Maximum junction temperature (Tj), °C: 125

Transition frequency (ft), MHz: 75

Collector capacitance (Cc), pF: 1.8

Forward current transfer ratio (hFE), min: 250

Noise Figure, dB: -

Package of 2SC1914 transistor: TO92
