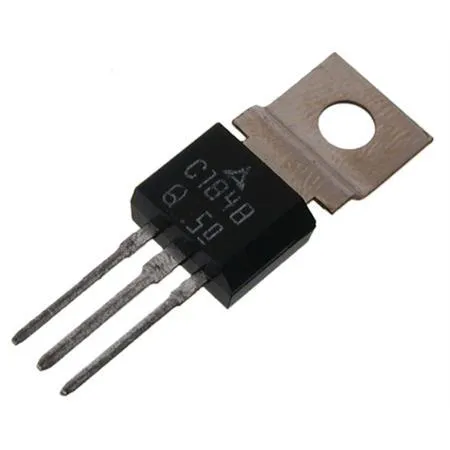

NPN 70V 2A 1,2W TO-202
Type Designator: 2SC1848
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 1.2
Maximum collector-base voltage |Ucb|, V: 70
Maximum collector-emitter voltage |Uce|, V: 50
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 2
Maximum junction temperature (Tj), °C: 175
Transition frequency (ft), MHz: 75
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 30
Noise Figure, dB: -
Package of 2SC1848 transistor: TO202
