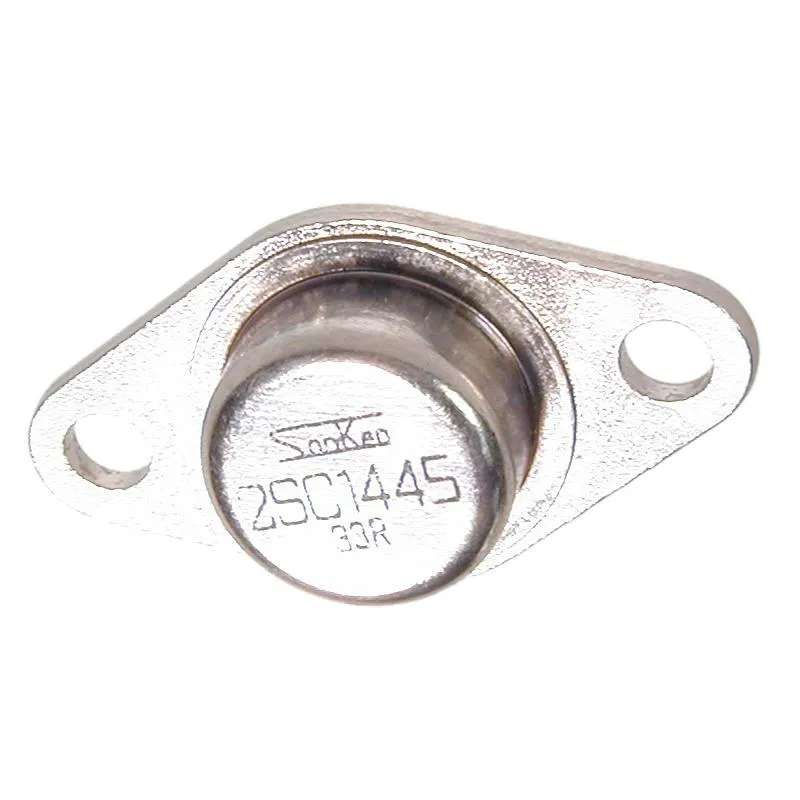

NPN.100V.6A.40W.TO-66
Type Designator: 2SC1445
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 40
Maximum collector-base voltage |Ucb|, V: 100
Maximum collector-emitter voltage |Uce|, V: 80
Maximum emitter-base voltage |Ueb|, V: 6
Maximum collector current |Ic max|, A: 6
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 5
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 30
Noise Figure, dB: -
Package of 2SC1445 transistor: TO66
