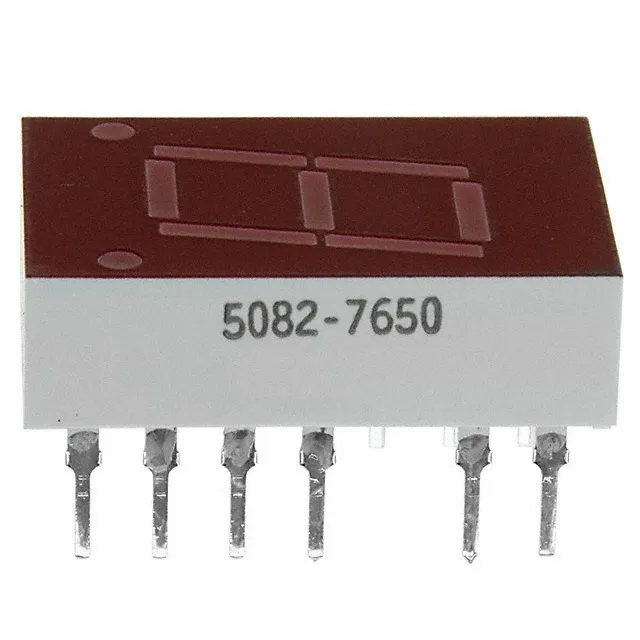

LED DISPLAY, 0.43", CA HE-RED
Varenummer:
127-212
Varekode: 5082-7650
Vægt: 7 g
27 stk.
på lager
- LED DISPLAY, 0.43", HE-RED
- No. of Digits / Alpha: 1
- Character Size: 10.9mm
- LED Colour: Red
- Common Connection: Common Anode
- Luminous Intensity: 1.115mcd
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- SVHC: No SVHC (19-Dec-2012)
- Background Colour: RED
- Character Type: .8
- Current If Luminous Intensity: 20mA
- External Depth: 6.35mm
- External Length / Height: 19.05mm
- External Width: 12.7mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.8V
- Forward Voltage per Segment @ If: 2.8V
- Lead Spacing: 2.54mm
- Luminous Intensity per Segment @ If Typ: 4.4mcd
- No. of Characters: 1
- Nom Current If per Segment: 60mA
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- PIV Max: 3V
- Row Pitch: 7.62mm
Inkl. moms
Kr. 10,00
Kr. 25,00
- v/10 – Kr. 7,50
- v/40 – Kr. 6,25
