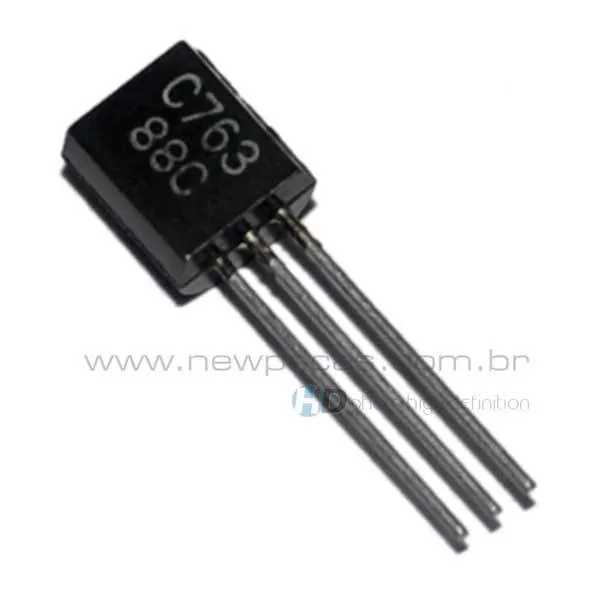

NPN, 25V, 0.02A,0,1W, TO-92
Type Designator: 2SC763
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.1
Maximum collector-base voltage |Ucb|, V: 25
Maximum collector-emitter voltage |Uce|, V: 12
Maximum emitter-base voltage |Ueb|, V: 3
Maximum collector current |Ic max|, A: 0.02
Maximum junction temperature (Tj), °C: 175
Transition frequency (ft), MHz: 235
Collector capacitance (Cc), pF: 3
Forward current transfer ratio (hFE), min: 70
Noise Figure, dB: -
Package of 2SC763 transistor: TO92
