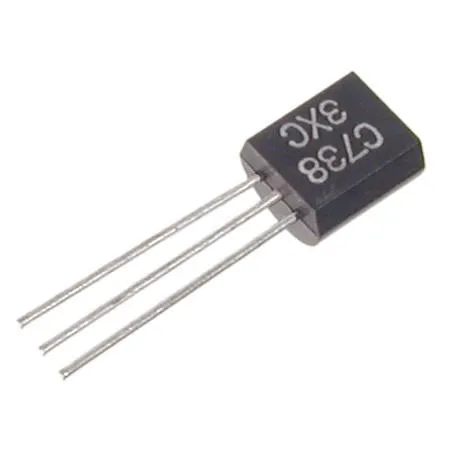

NPN, 25V, 0.02A,0,15W, TO-92
Type Designator: 2SC738
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.15
Maximum collector-base voltage |Ucb|, V: 25
Maximum collector-emitter voltage |Uce|, V: 12
Maximum emitter-base voltage |Ueb|, V: 4
Maximum collector current |Ic max|, A: 0.02
Maximum junction temperature (Tj), °C: 125
Transition frequency (ft), MHz: 200
Collector capacitance (Cc), pF: 3
Forward current transfer ratio (hFE), min: 60
Noise Figure, dB: -
Package of 2SC738 transistor: TO92
