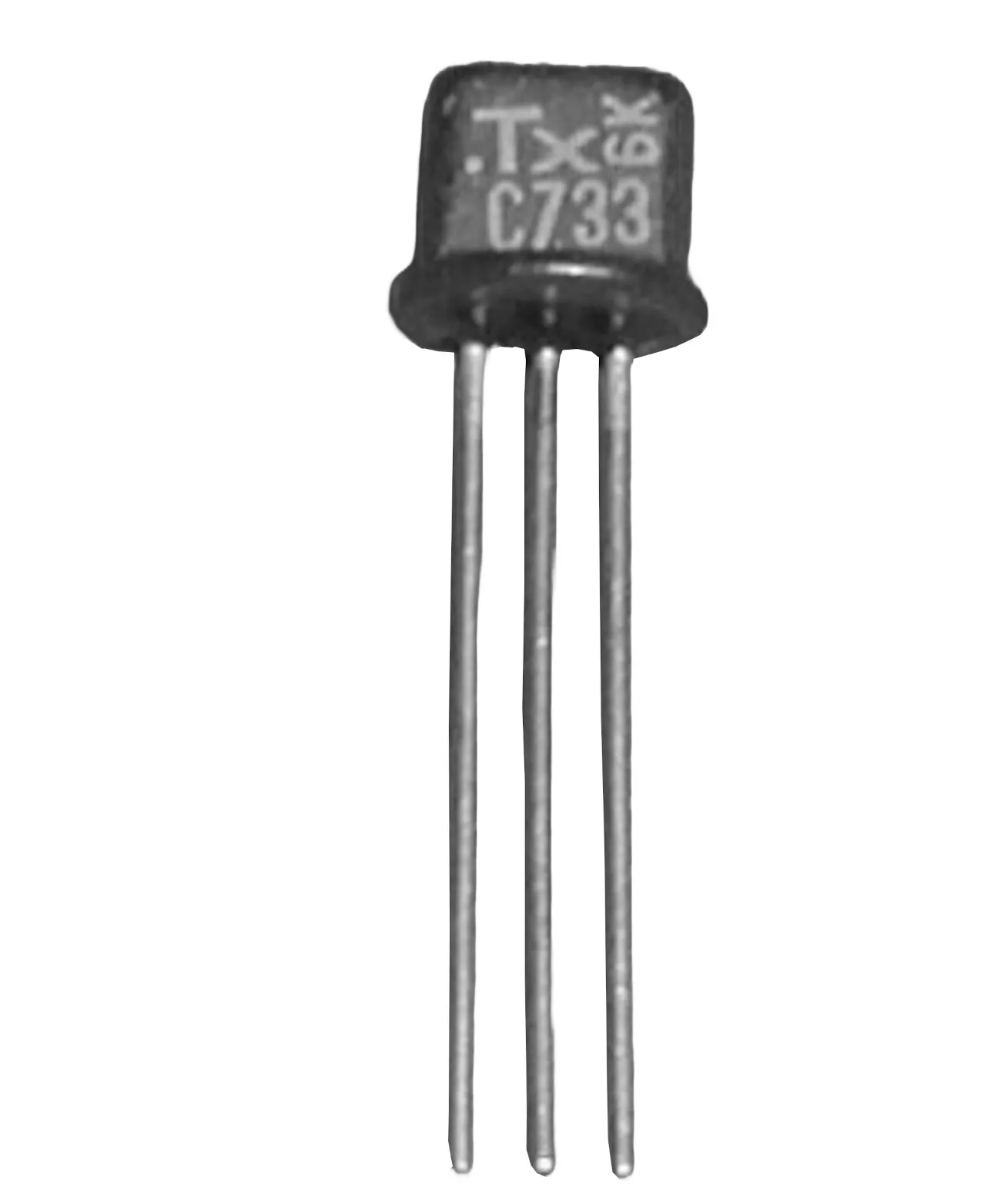

NPN, 35V, 0.1A,0,3W, TO-98-1
Type Designator: 2SC733
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.3
Maximum collector-base voltage |Ucb|, V: 35
Maximum collector-emitter voltage |Uce|, V: 30
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.1
Maximum junction temperature (Tj), °C: 125
Transition frequency (ft), MHz: 80
Collector capacitance (Cc), pF: 14
Forward current transfer ratio (hFE), min: 70
Noise Figure, dB: -
Package of 2SC733 transistor: TO98-1
- v/10 – Kr. 10,00
- v/20 – Kr. 7,50
NPN, 35V, 0.1A,0,3W, TO-98-1
Type Designator: 2SC733
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.3
Maximum collector-base voltage |Ucb|, V: 35
Maximum collector-emitter voltage |Uce|, V: 30
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.1
Maximum junction temperature (Tj), °C: 125
Transition frequency (ft), MHz: 80
Collector capacitance (Cc), pF: 14
Forward current transfer ratio (hFE), min: 70
Noise Figure, dB: -
Package of 2SC733 transistor: TO98-1
