NPN 40V 0,2A 0,36W TO18
Type Designator: 2SC68
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.36
Maximum collector-base voltage |Ucb|, V: 40
Maximum collector-emitter voltage |Uce|, V: 15
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.2
Maximum junction temperature (Tj), °C: 150
Transition frequency (ft), MHz: 200
Collector capacitance (Cc), pF: 7
Forward current transfer ratio (hFE), min: 100
Noise Figure, dB: -

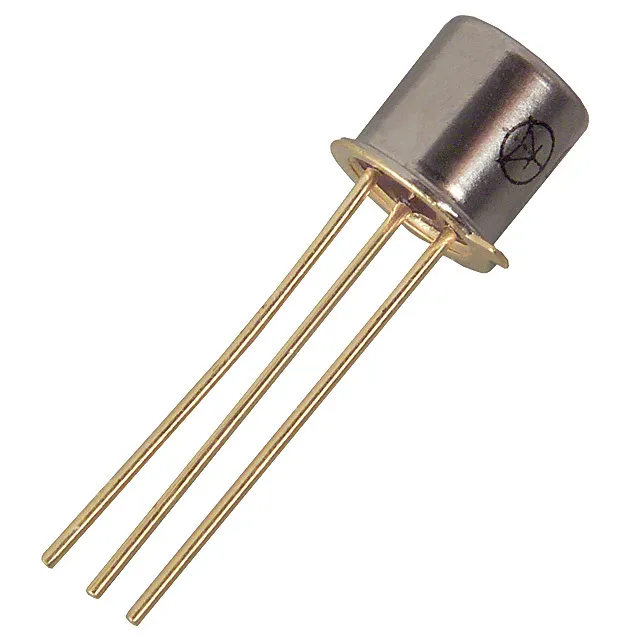

Package of 2SC68 transistor: TO18
