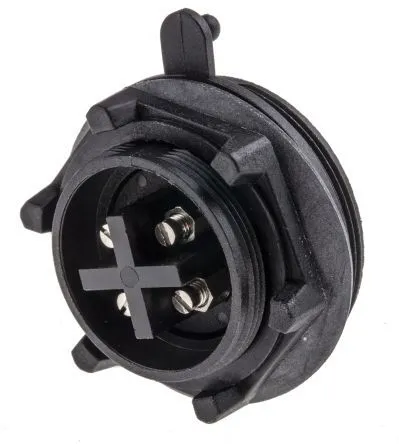

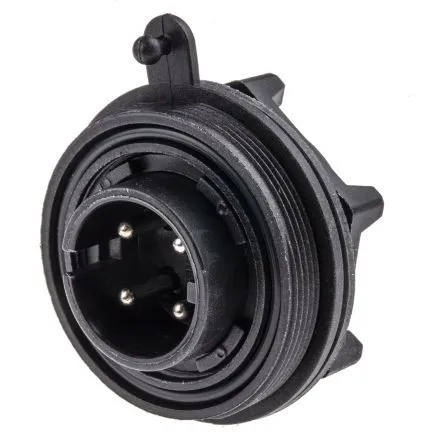

Koblingsfatning Buccaneer han 4-polet
Varenummer:
126-984
Varekode: PX0747/P
Vægt: 18 g
4 stk.
på lager
Bestil nu for afsendelse mandag d. 5/10
Yderligere 51 stk. kan skaffes søndag d. 11/10
Gruppe: F4264
BULGIN Circular Cable Connector
Series: Buccaneer Standard
Watertight IP68
| Technical Specifications |
 | |
| Housing Material: | Glass Filled Polyamide (UL94-V0) |
| Contact Material: | Brass, Nickel-plated |
| Rated Current | |
| 2, 3 pole: | 12A |
| 4 pole: | 10A |
| 6 pole: | 5A |
| Rated Voltage | 250V AC/DC |
| Contact Accommodation, Max. | |
| 2, 3 pole: | 4mm2 (12AWG) |
| 4, 6 pole: | 1,5mm2 (16AWG) |
| Contact Resistance, Max.: | 10mOhm |
| Insulation Resistance, Min. (@500V DC): | 104MOhm |
| Breakdown Voltage, AC (Pole/Pole): | 4kV |
| Operating Temperature Range: | -20...+70°C |
| Degree of Protection: | IP68 |
| |
