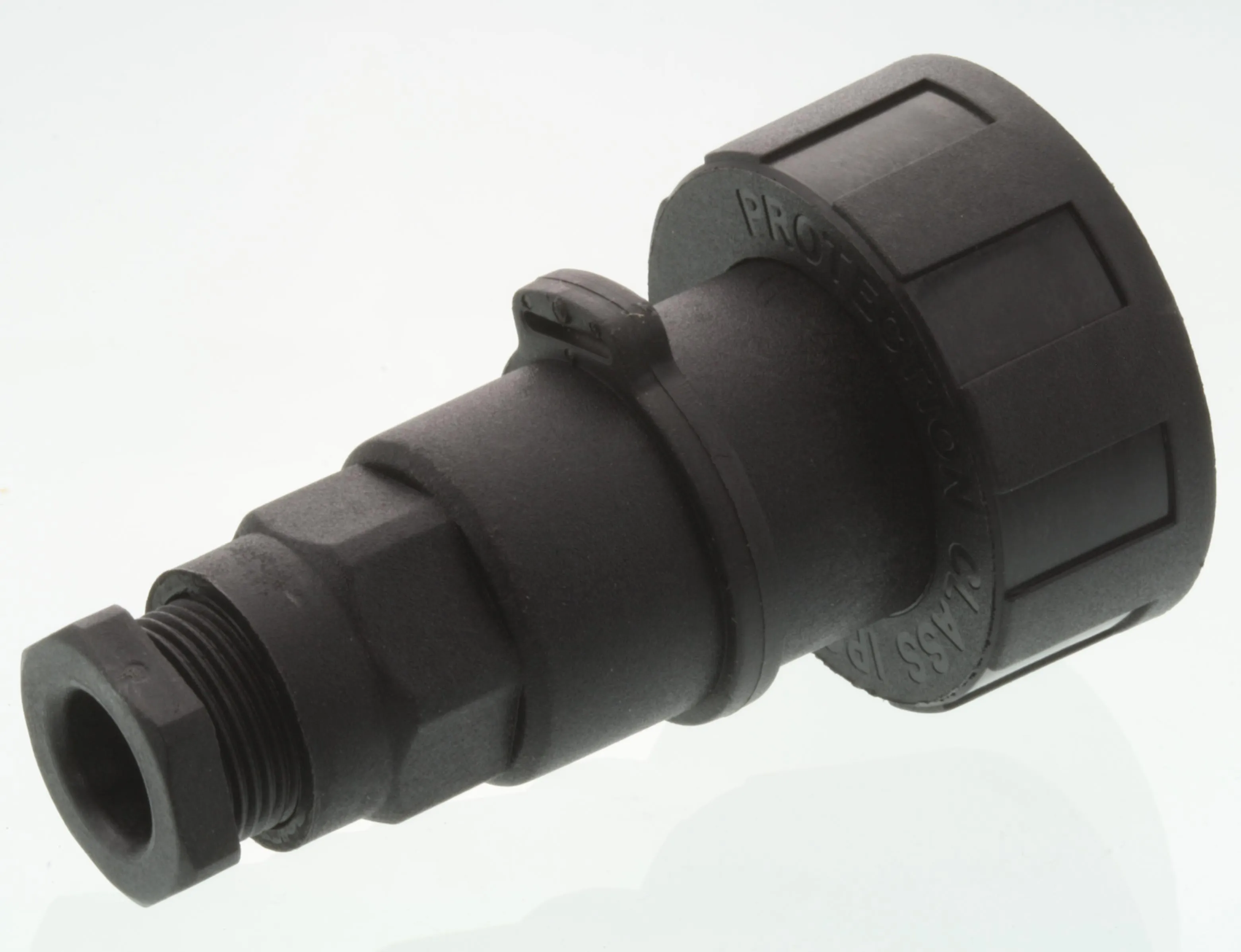

Kabelfatning Buccaneer hun 6-pol
Varenummer:
126-982
Varekode: PX0739/S
Vægt: 36 g
5 stk.
på lager
Gruppe: F4264
BULGIN Circular Cable Connector
Series: Buccaneer Standard
Watertight IP68
| Features |
| • 2, 3, 4 and 6 pole • Cable socket and able plug housing • For cables with 6...8mm diameter, 3,5...9mm with additional gland pack • Diameter over coupling ring 38,1mm |
 |
| Technical Specifications |
| |
| Housing Material: | Glass Filled Polyamide (UL94-V0) |
| Contact Material: | Brass, Nickel-plated |
| Rated Current | |
| 2, 3 pole: | 12A |
| 4 pole: | 10A |
| 6 pole: | 5A |
| Rated Voltage | 250V AC/DC |
| Contact Accommodation, Max. | |
| 2, 3 pole: | 4mm2 (12AWG) |
| 4, 6 pole: | 1,5mm2 (16AWG) |
| Contact Resistance, Max.: | 10mOhm |
| Insulation Resistance, Min. (@500V DC): | 104MOhm |
| Breakdown Voltage, AC (Pole/Pole): | 4kV |
| Operating Temperature Range: | -20...+70°C |
| Degree of Protection: | IP68 |
