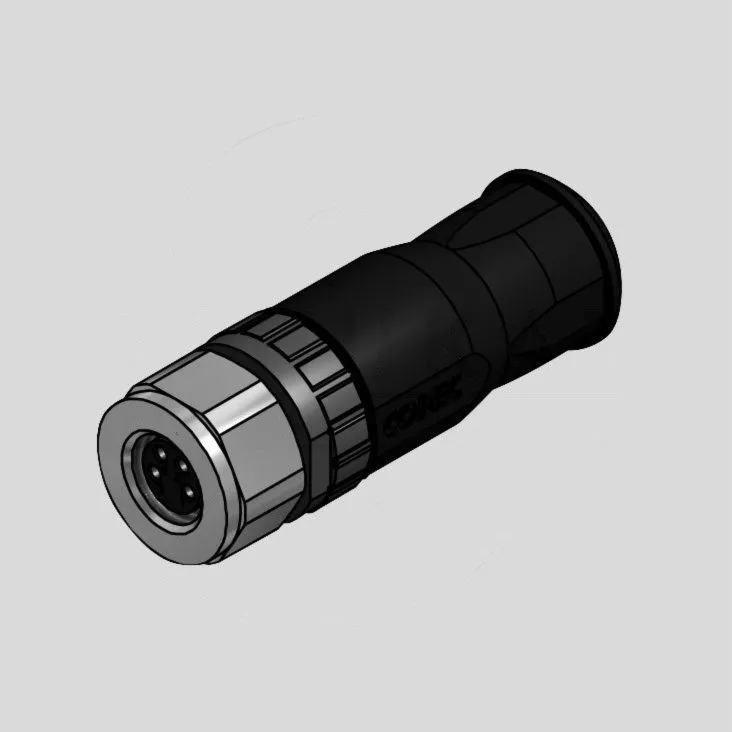

Female Cable Con. 4-Pole Screw Term
Varenummer:
126-839
Varekode: SAL-8-RKC4-S
Vægt: 18 g
2 stk.
på lager
Part. No.: 42-00012
SAL-8-RKC4-S
Short description
- Connectors field attachable
- Female connector axial
- Screw Termination
- M8x1
- 4- pos.
- Screwable
- Unshielded
- Zinc die cast
General Data | |
| Coding | A-coding |
|---|---|
| Contact type | Female connector axial |
| Locking type | Screwable |
| Product type | Connectors field attachable |
| Size A-side | M8x1 |
| Size/Number of positions | 4- pos. |
| Style | Field attachable connectors |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
Certificates | |
| Product UL approved [UL File] | UL-File: E331608 |
|---|
Material Data | |
| Coupling nut /-screw material | Zinc die cast |
|---|---|
| Coupling nut /-screw plating | Nickel |
| Housing color | Black |
| Housing material | zinc die cast |
| Insulator color | Black |
| Insulator material | PA6 , UL94 |
| Plating signal contact (mating area) | Gold over nickel |
| Signal contact material | Copper alloy |
Technical Data | Specifications | |
| Current rating signal | 3 A at +40°C | IEC 61076-2-104 |
|---|---|---|
| IP rating | IP67 | IEC 60529 |
| Insulation resistance | >=100M Ohm | IEC 60512 |
| Mating cycles | >=100 | IEC 60512-9a |
| Pollution degree | 3/2 | IEC 60664-1 |
| Sealing material | Silikon | |
| Shielding | Unshielded | |
| Wire cross section | max. 0,5 mm² | |
| Working voltage signal | 50 V AC/ 60 V DC [UL: 30 V AC/DC] | IEC 61076-2-104 |
| max. working temperature | +80° C | IEC 60664-1 |
| min. working temperature | -30° C | IEC 60664-1 |
Inkl. moms
Kr. 92,58
- v/10 – Kr. 74,06
- v/100 – Kr. 55,55
