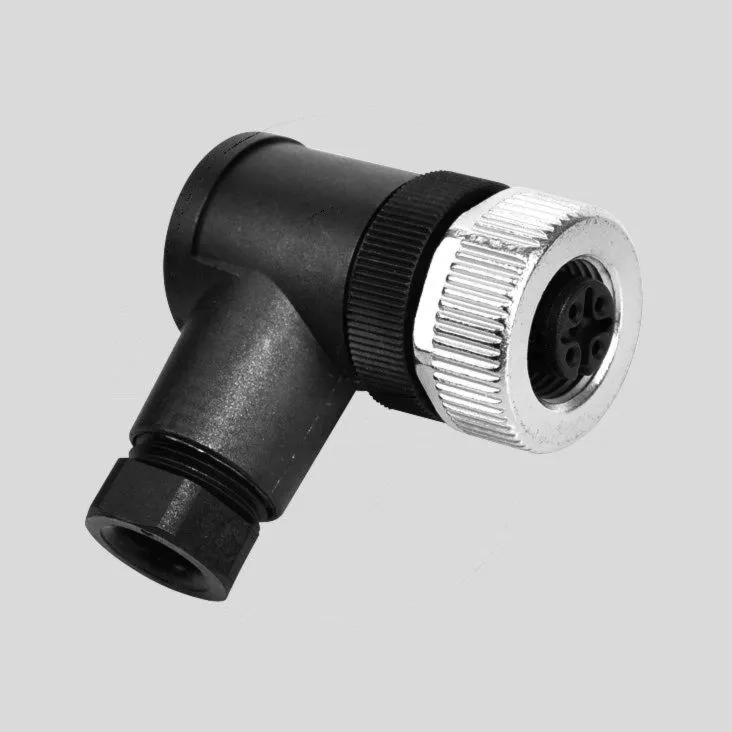

M12 Female Angled Cable Connector 5-Pole Scr
Varenummer:
126-833
Varekode: BIN99-0436-24-05
Vægt: 10 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 10/10
Gruppe: F4237
BINDER Connectors with Screw Locking
Series: M12 A-Coded, 713
Cable Mounting, IP67
| Features |
| • Cable connectors with screw locking • Thread locking M12x1 • Screw connection • Shield connection with shield ring/iris type spring • UL versions • Degree of protection IP67 |
 |
| Technical Specifications |
| |
| Connector Locking System: | Screw |
| Termination: | Screw |
| Wire Gauge, Max.: | 0,75mm2 |
| Cable Outlet, Max.: | 4...6mm |
| Degree of Protection: | IP67 |
| Mechanical Operating Life: | >50 Cycles |
| Temperature Range: | -25...+85°C |
| Rated Voltage | |
| BIN99-_-_404: | 250V |
| BIN99-_-_405: | 125V |
| Rated Current (40°C): | 4A |
| Contact Resistance, Max.: | 8mOhm |
| Material of Contact: | CuZn, Optaloy |
| Material of Housing: | PA |
| |
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
Inkl. moms
Kr. 184,69
- v/10 – Kr. 156,22
- v/50 – Kr. 127,75
Produktfiler
