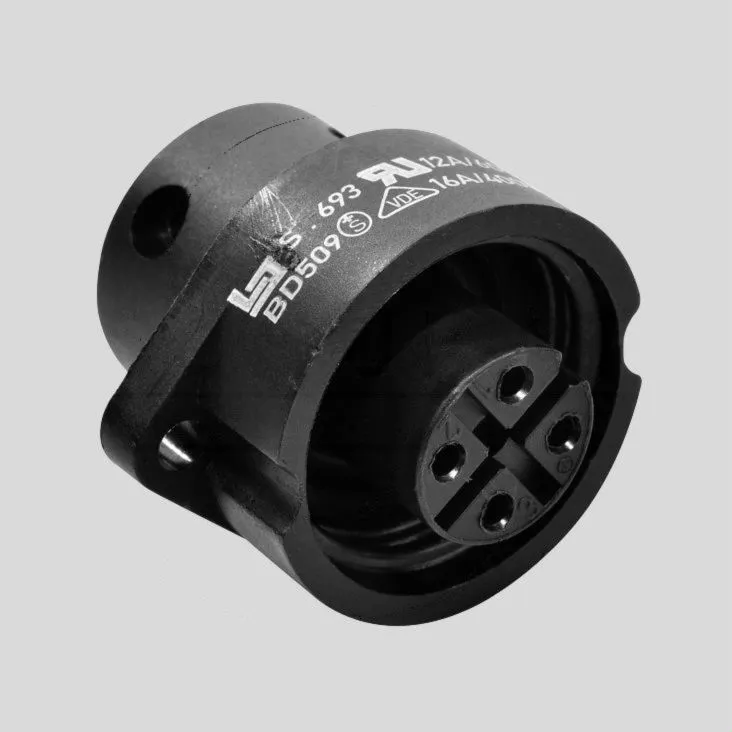

Serie 693 Female Socket 4-Pole 3+PE Screw Term.
Varenummer:
126-826
Varekode: BIN09-4224-00-04
Vægt: 10 g
0 stk.
på lager
Gruppe: F4232
BINDER Connectors with Screw Locking
Series: RD24
Panel Mounting, IP67
| Features |
| • Connector for panel mounting • With screw locking • Degree of protection IP67 • With UL, VDE and SEV approval |
 |
| Technical Specifications |
| |||||||||||||||||||||||
| Connector Locking System: | Screw | Termination: | see Table | Wire Gauge, Max.: | see Table | Degree of Protection: | IP67 | Mechanical Operating Life: | >500 Cycles | Temperature Range: | -40...+100°C | Rated Voltage: | see Table | Rated Current (40°C): | see Table | Contact Resistance, Max.: | 3mW | Material of Contact: | CuZn, Silver-plated | Material of Housing: | PBT | ||
| |||||||||||||||||||||||
| Part-Nr. | Pole | UN | IN | Wire | Termina- | BIN09-_ | Gauge | tion | [V] | [A] | [mm2] | 4224-0004 | 3+PE | 400 | 16 | 0,5...2,5 | Screw | ||||||||||||
| UN = Rated Voltage, IN = Rated Current (40°C) | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Binder http://www.binder-connector.de |
|
Inkl. moms
Kr. 110,00
- v/10 – Kr. 90,00
- v/100 – Kr. 83,75
Produktfiler
Serie 693 Female Socket 4-Pole 3+PE Screw Term.
126-826
/ BIN09-4224-00-04
0 stk.
på lager
Gruppe: F4232
BINDER Connectors with Screw Locking
Series: RD24
Panel Mounting, IP67
| Features |
| • Connector for panel mounting • With screw locking • Degree of protection IP67 • With UL, VDE and SEV approval |
|
| Technical Specifications |
| |||||||||||||||||||||||
| Connector Locking System: | Screw | Termination: | see Table | Wire Gauge, Max.: | see Table | Degree of Protection: | IP67 | Mechanical Operating Life: | >500 Cycles | Temperature Range: | -40...+100°C | Rated Voltage: | see Table | Rated Current (40°C): | see Table | Contact Resistance, Max.: | 3mW | Material of Contact: | CuZn, Silver-plated | Material of Housing: | PBT | ||
| |||||||||||||||||||||||
| Part-Nr. | Pole | UN | IN | Wire | Termina- | BIN09-_ | Gauge | tion | [V] | [A] | [mm2] | 4224-0004 | 3+PE | 400 | 16 | 0,5...2,5 | Screw | ||||||||||||
| UN = Rated Voltage, IN = Rated Current (40°C) | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Binder http://www.binder-connector.de |
|
