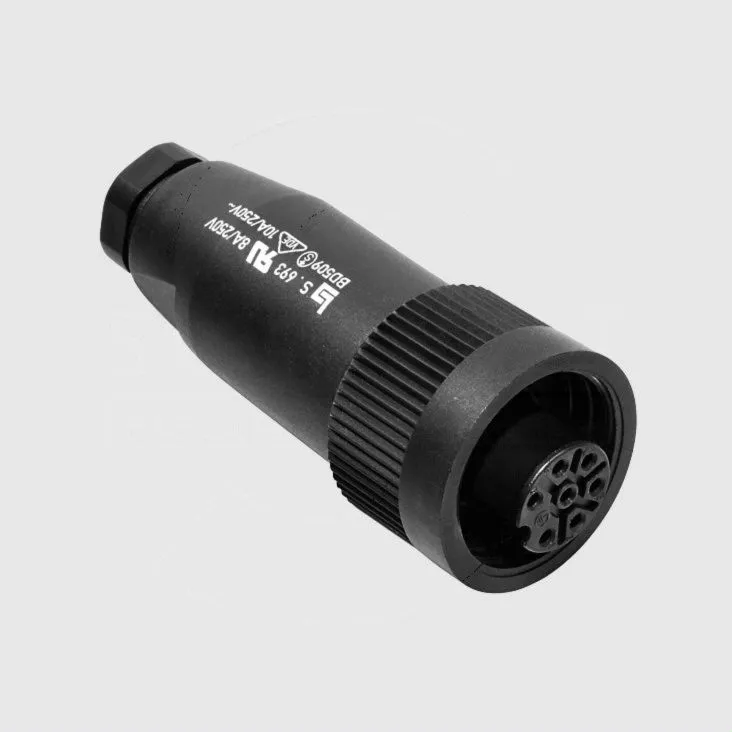

Serie 693 Female Cable Connector 7-Pole 6+PE Solde
Varenummer:
126-825
Varekode: BIN99-4226-00-07
Vægt: 10 g
0 stk.
på lager
Gruppe: F4231
BINDER Connectors with Screw Locking
Series: PG9
Cable Mounting, IP67
| Features |
| • Connector with scew locking • Degree of protection IP67 • with UL, VDE and SEV approval |
 |
| Technical Specifications |
| |||||||||||||||||||||||||
| Connector Locking System: | Screw | Termination: | see Table | Wire Gauge, Max.: | see Table | Cable Outlet, Max.: | see Table | Degree of Protection: | IP67 | Mechanical Operating Life: | >500 Cycles | Temperature Range: | -40...+100°C | Rated Voltage: | see Table | Rated Current (40°C): | see Table | Contact Resistance, Max.: | 5mW | Material of Contact: | CuZn, Silver-plated | Material of Housing: | PBT (UL94V-0) | ||
| |||||||||||||||||||||||||
| Part-Nr. | Pole | UN | IN | Wire | Cable | Termina- | BIN99-_ | Gauge | Outlet | tion | [V] | [A] | [mm2] | [mm] | 4226-0007 | 6+PE | 250 | 10 | 0,75 | 6...9,5 | Solder | |||||||||||||
| UN = Rated Voltage, IN = Rated Current (40°C) | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Binder http://www.binder-connector.de |
|
Inkl. moms
Kr. 150,00
- v/10 – Kr. 105,00
- v/100 – Kr. 96,25
