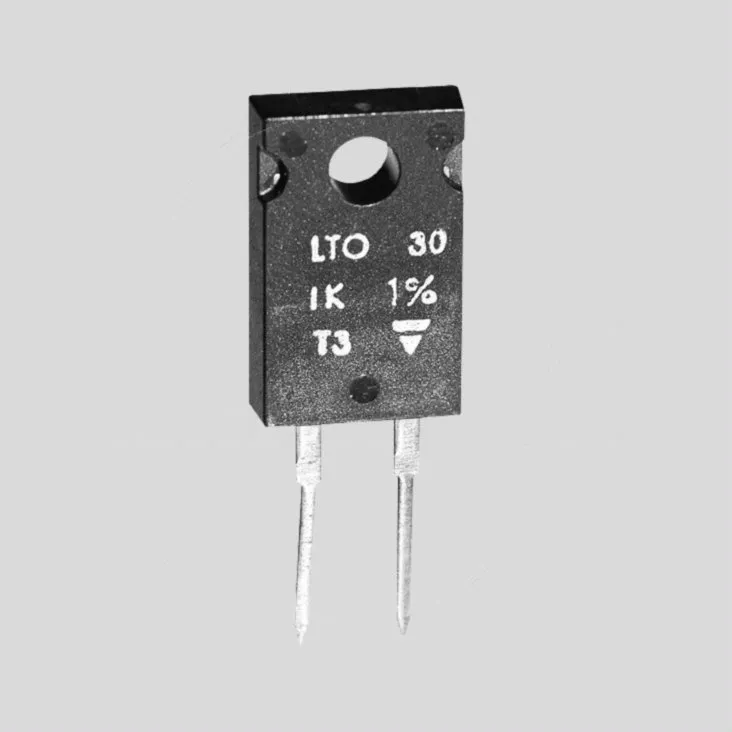

Resistor TO220 30W 1% 0,022R
Varenummer:
126-629
Varekode: LTO030FR0220FTE3
0 stk.
på lager
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Produkt | modstand |
| Effekt, max. | 30 W |
| Tolerance | ±1 % |
| Modstand | 0.022 Ω |
Features
| • 30W at 25°C and heatsink mounted (optional) • Low inductance • Compact size • Easy to mount due to TO220-package • direct ceramic mounting design (no metal tab) |
 |
| Technical Specifications |
| |
| Tolerance: | ±1% |
| Power Rating | |
| Without Heatsink (25°C): | 2,25W |
| With Heatsink1) (25°C): | 30W |
| Operating Voltage, Max.: | 250V |
| Dielectric Strength: | 1500Vrms |
| Temperature Coefficient | |
| to incl. 0,1Ohm: | ±250ppm/°C |
| 0,1...0,5Ohm: | ±150ppm/°C |
| Thermal Resistance: | 4,2°C/W |
| Temperature Range: | -55...+155°C |
| Climatic Category: | 55/155/56 |
| Derating: | See Curve |
| 1) For calculation of heatsink please see values below Note. | |
| |
| Calculation of heatsink |
| P = DT / [RTH(j-c) + RTH(c-a)] P = Expressed in W DT = Difference between maximum working temperature (155°C) and room temperature RTH(j-c) = Thermal resistance of the component RTH(c-a) = Thermal resistance of the heatsink and quality of fastening device Example: Ambient temperature 30°C, Power Rating: 10W 1) P = DT / [RTH(j-c) + RTH (c-a)] 2) DT = 155°C - 30°C = 125K 3) [RTH(j-c) + RTH (c-a)] = DT / P = 125K / 10W = 12,5K/W4) RTH (c-a) = 12,5K/W - 4,2K/W = 8,3K/W |
|
