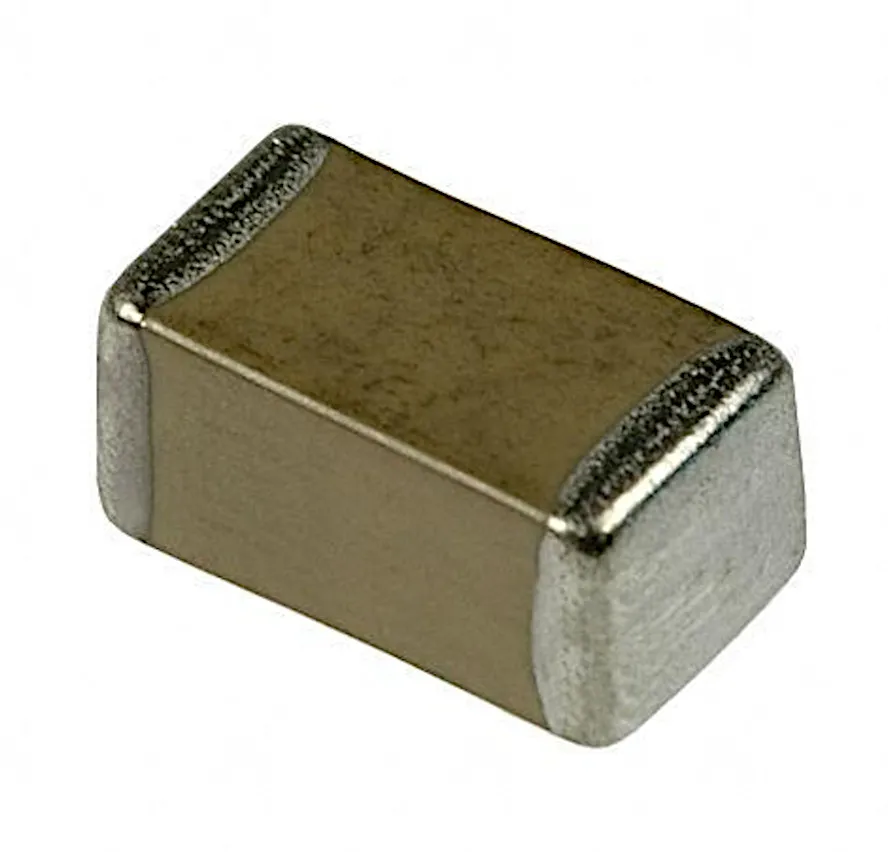

SMD MLC Capacitor 820pF 50V 5% NPO 0603
Varenummer:
126-550
Varekode: CCPF820K0603
100 stk.
på lager
Specifikationer
| Materiale | NP0 |
|---|---|
| Produkt | kondensator |
| Kondensator-type | keramisk |
| Kapacitans | 820 pF |
| Spænding, max. | 50 V |
| Tolerance | ±5 % |
| Komponenthus | 0603 |
Gruppe: C5411
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: NP0
Housing: 0603
| Technical Specifications |
 | |||||||||
| Rated Voltage (UN): | 50V DC | Test Voltage: | 2,5xUN | Capacitance Tolerance: | 5% | 10pF: | ±0,25pF | ||
| |||||||||
| Chip Dimensions |
| Housing | L | I | e | bmMin. | [mm] | [mm] | [mm] | [mm] | 0603 | 1,6±0,1 | 0,8±0,1 | 0,8±0,1 | 0,5 | ||||||
| |||||||||||||||||||
| Additional Products |
| Other articles from row E12 (3 reels min.) available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 500 pieces Form of delivery: orders of less than 4000 pieces: 500 pieces on segment tape without leader tape and reel; orders of 4000 pieces: 4000 pieces on super-8 reel. |
|
| Manufacturer |
| Darfon http://www.darfon.com |
|
Inkl. moms
v/10
Kr. 1,25
- v/100 – Kr. 1,00
- v/500 – Kr. 0,62
- v/4000 – Kr. 0,06
