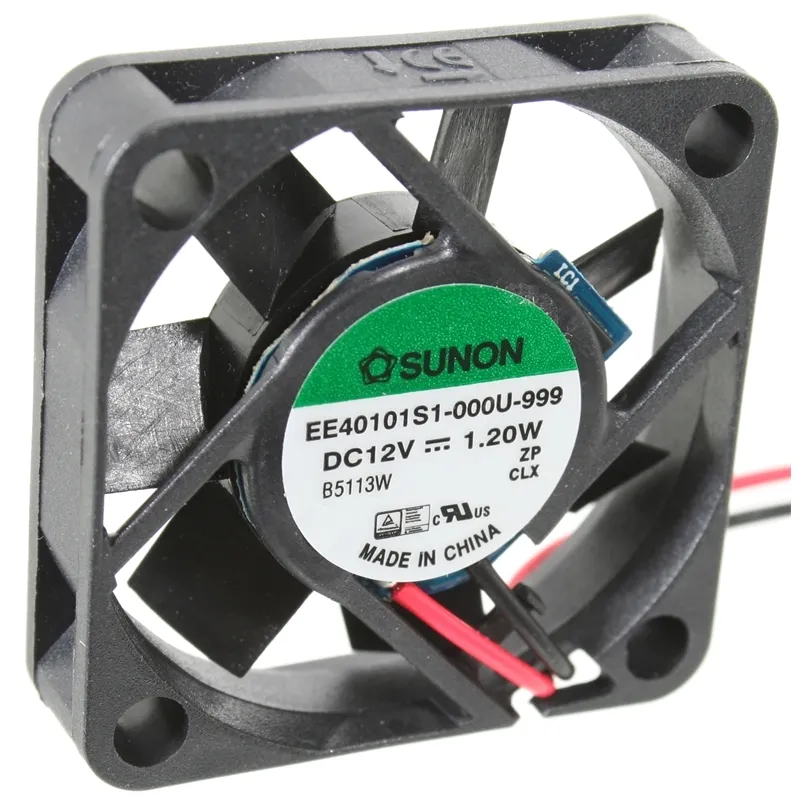

Fan 12V 40x10 S 13,5m³/h 32dBA 1,2W
Varenummer:
126-280
Varekode: EE40101S1-999
Vægt: 13 g
7 stk.
på lager
Gruppe: K2271
SUNON DC Axial Fans
40x40x10mm
Series: ME, MB, EE, EB
SUNON DC Axial Fans
40x40x10mm
Series: ME, MB, EE, EB
| Design |
 | |
| Motor: | DC Brushless Motor Design |
| Nr. of Motor Poles: | 4 |
| Frame, Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System | |
| _4010_S_: | Sleeve |
| _4010_V_: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | AWG26, Stripped, Tinned |
| |
| Technical Specifications |
| |
| Rated Voltage | |
| _40100_: | 5V DC |
| _40101_: | 12V DC |
| Operating Voltage | |
| _40100_: | 3,5...6V DC |
| _40101_1_: | 4,5...13,8V DC |
| _40101_2_: | 6...13,8V DC |
| Dielectric Strength at 65% r. F.: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC: | >500MW |
| _40101_1_: | >10MW |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
| |
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| Â | [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] |
| MB40100V2-A99 | 5 | 11,89 | 27 | 0,18 | 0,9 | 5800 |
| EB40100S2-999 | 5 | 11,89 | 27 | 0,205 | 1 | 5800 |
| ME40101V1-A99 | 12 | 13,59 | 32 | 0,09 | 1,08 | 7000 |
| EE40101S1-999 | 12 | 13,59 | 32 | 0,1 | 1,2 | 7000 |
| MB10101V2-A99 | 12 | 11,89 | 27 | 0,08 | 0,96 | 5800 |
| MB40101V2-G99 | 12 | 11,89 | 27 | 0,08 | 0,96 | 5800 |
| EB40101S2-999 | 12 | 11,89 | 27 | 0,09 | 1,08 | 5800 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
| ||||||
| Labelling |
 |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.sunon.com.tw |
|
Inkl. moms
Kr. 35,63
- v/10 – Kr. 26,72
- v/100 – Kr. 22,27
