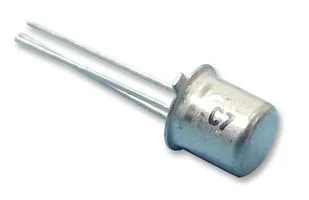

PNP 25V 0,1A 0,3W TO18
Varenummer:
126-273
Varekode: BC179B
1241 stk.
på lager
Bestil nu for afsendelse i morgen
- TRANSISTOR, PNP, TO-18
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 20V
- Transition Frequency Typ ft: 200MHz
- Power Dissipation Pd: 300mW
- DC Collector Current: -100mA
- DC Current Gain hFE: 240
- Operating Temperature Min: -65°C
- Operating Temperature Max: 175°C
- Transistor Case Style: TO-18
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2012)
- Collector Emitter Voltage Vces: 250mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 100MHz
- Gain Bandwidth ft Typ: 200MHz
- Hfe Min: 240
- No. of Transistors: 1
- Noise Factor Max: 4dB
- Operating Temperature Range: -65°C to +175°C
- Package / Case: TO-18
- Pin Configuration: a
- Power Dissipation Ptot Max: 300mW
- Termination Type: Through Hole
- Voltage Vcbo: 25V
Inkl. moms
Kr. 5,00
- v/10 – Kr. 3,75
- v/50 – Kr. 2,50
- v/200 – Kr. 1,25
- v/1000 – Kr. 0,75
