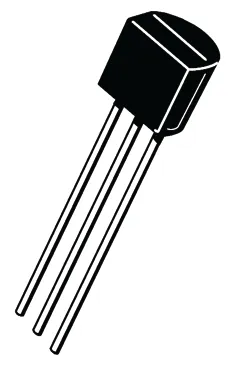

NPN 30V 0,1A 0,3W TO92

NPN 30V 0,1A 0,3W TO92

Varenummer: 126-271

Varekode: BC239B

3147 stk. på lager

Bestil inden kl. 14 i dag for afsendelse i dag

Vis lignende produkter i kategorien "B.."

Type Designator: BC239B

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 150 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 200

Inkl. moms

Kr. 2,00

v/10 – Kr. 1,25
v/100 – Kr. 0,38
v/1000 – Kr. 0,25

NPN 30V 0,1A 0,3W TO92

126-271

/ BC239B

3147 stk. på lager

Bestil inden kl. 14 i dag for afsendelse i dag

Kontakt os for at få oplyst leveringstid

Type Designator: BC239B

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 150 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 200

Kr. 2,00

v/10 – Kr. 1,25
v/100 – Kr. 0,38
v/1000 – Kr. 0,25
