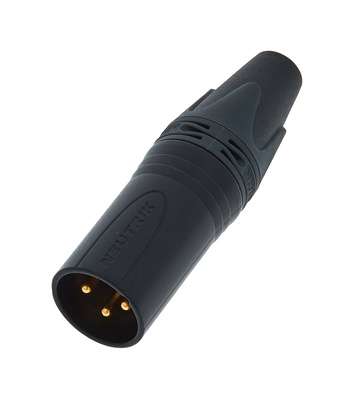

XLR 3P Han Sort NEUTRIK GULD-kontakter
NEUTRIK NC3MXX-B
3 pole cable connector, male. Black metal housing and gold contacts.
TECHNICAL DATA
Electrical
Number of contacts: 3
Contact resistance: ≤ 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤ 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 0.2 µm Au hard alloy over 2 µm Ni
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´
| Type | Connector |
| Connection 1 | XLR 3-pin Male |
| Mounting | Soldering |
| Diameter Wire | 3.5 - 8 mm |
| Cable Protector | Yes |
| Colour | Black |
| Housing Material | Plastic |
| Gold Plated Contacts | Yes |
| Packaging | Bulk |
- v/5 – Kr. 69,00
- v/10 – Kr. 59,00
- v/50 – Kr. 52,50
