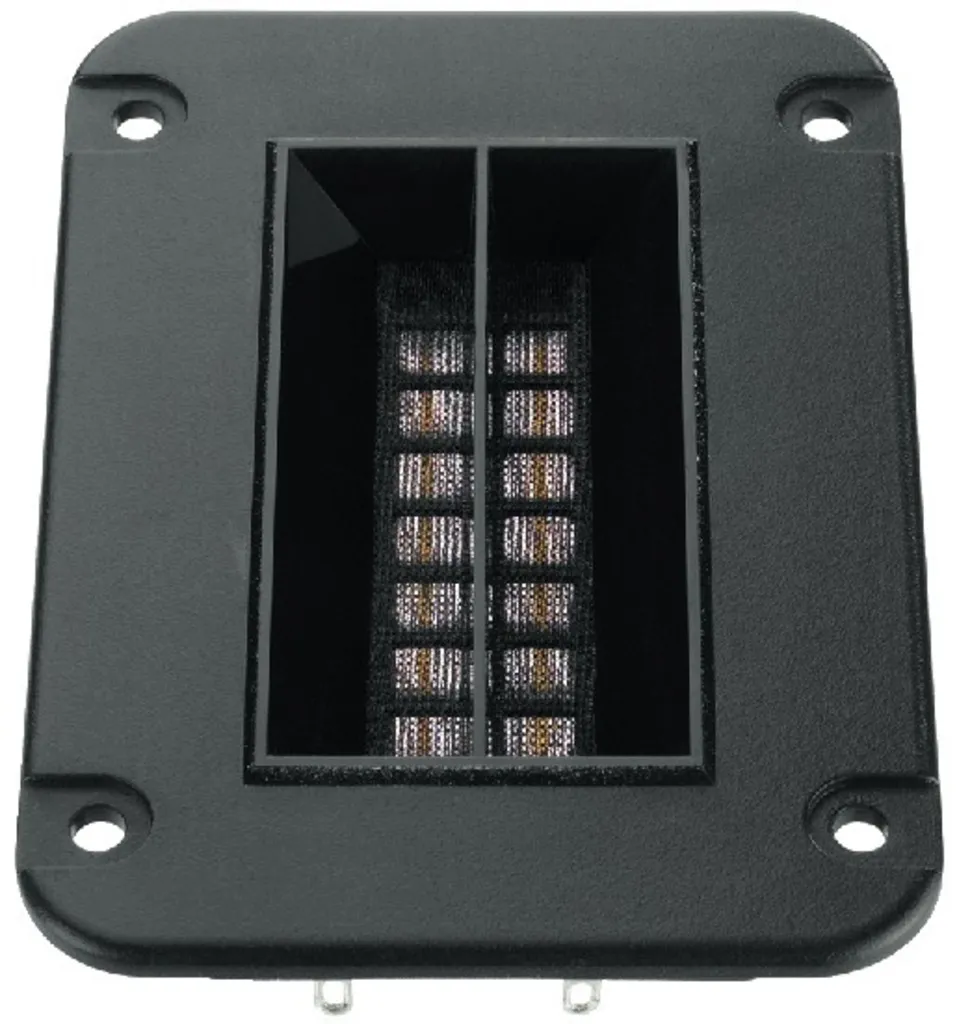

Bånddiskant 8 Ohm 40W 95x43mm
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 4,500Hz |
| Max. frequency range | fx-22,000Hz |
| Rec. crossover freq. (12dB) | 5,000Hz |
| Music power | > 60WMAX |
| Power rating | > 30WRMS |
| SPL (1W/m) | 98dB |
| Voice coil diameter | - |
| Magnet diameter | magnetostatic speaker |
| Mounting cutout | 80x45mm |
| Mounting depth | 17mm |
| Dimensions | 95x68mm |
| Weight | 130g |
Ribbon tweeters, 8Ω, 60WMAX, 30WRMS
These magnetostatic speakers of an exceptionally high efficiency achieve a perfectly fine dynamic reproduction of the high range and the brilliance frequency range. The power capability of the system can considerably be increased by voltage dividers (level attenuations which take tweeters to the level of normal hi-fi systems) or maybe higher crossover frequencies. These tweeters achieve a very light sound of low distortion which particularly improves the stereophony in applications from 5kHz on. By adding a super tweeter above 8-10kHz, e.g. even high-quality full range systems can be further improved.
RBT-95: round
RBT-95SQ: square
