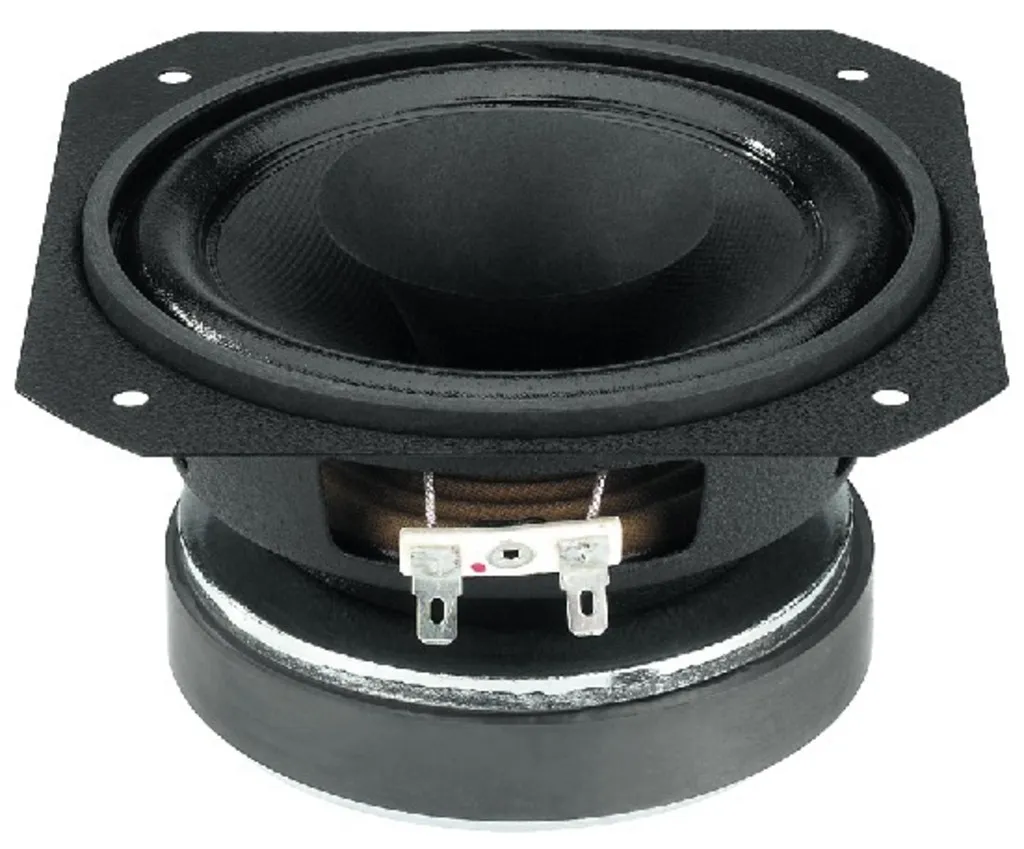

Fuldtoneenhed 5" 8 Ohm 30W
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 60Hz |
| Max. frequency range | f3-20,000Hz |
| Music power | 60WMAX |
| Power rating (P) | 30WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 1.19mm/N |
| Moving mass (Mms) | 5.9g |
| Mech. Q factor (Qms) | 2.17 |
| Electr. Q factor (Qes) | 0.53 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 9 l |
| DC resistance (Re) | 6.2Ω |
| Force factor (BxL) | 5.1Tm |
| Voice coil induct. (Le) | 0.4mH |
| Voice coil diameter | 25.5mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±1.3mm |
| Eff. cone area (Sd) | 80cm2 |
| Magnet weight | 370g |
| Weight | 1.1kg |
Full range speaker, 60WMAX, 8Ω
High power capability, drilled pole core, with very good frequency response linearity also in the high frequency range, for general applications. The speaker from the successful K&T building concepts CT193 and CT194.
Klang+Ton
"The most successful cheap trick of all times, none of our other full range speakers has reached higher sales figures ... unusually low fading, an almost unbelievable bass reproduction for such a small full range speaker."
