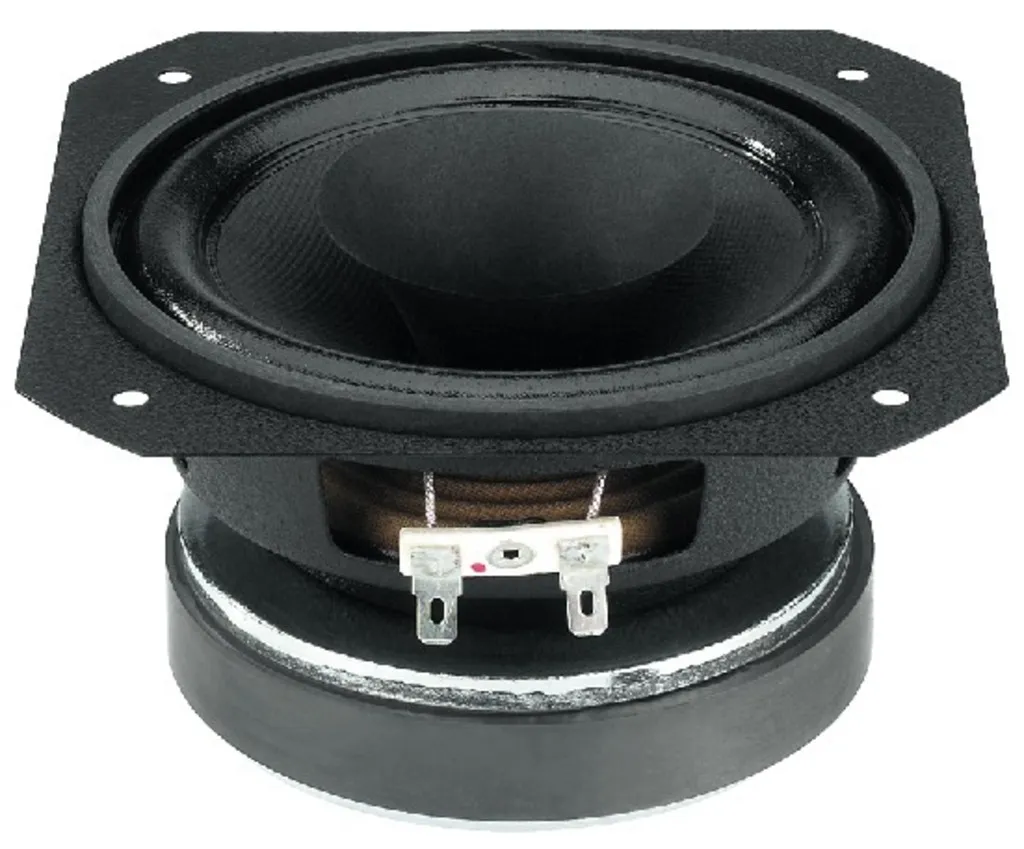

Fuldtoneenhed 5" 8 Ohm 30W
Varenummer:
125-633
Varekode: SPH-68X/AD
Vægt: 1150 g
0 stk.
på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 60Hz |
| Max. frequency range | f3- 20,000Hz |
| Music power | 60WMAX |
| Power rating (P) | 30WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 1.1mm/N |
| Moving mass (Mms) | 6.5g |
| Mech. Q factor (Qms) | 3.19 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 9.7 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 5.7Tm |
| Voice coil induct. (Le) | 0.5mH |
| Voice coil diameter | 25.5mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1mm |
| Eff. cone area (Sd) | 80cm2 |
| Magnet weight | 370g |
| Weight | 1.1kg |
Full range speakers, 60WMAX, 8Ω (68X) or 4Ω (64X)
High power capability, drilled pole core, flat wire voice coil, with very good frequency response linearity also in the high frequency range, for general applications.
Inkl. moms
Kr. 399,00
Kr. 429,00
Produktfiler
Fuldtoneenhed 5" 8 Ohm 30W
125-633
/ SPH-68X/AD
0 stk.
på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 60Hz |
| Max. frequency range | f3- 20,000Hz |
| Music power | 60WMAX |
| Power rating (P) | 30WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 1.1mm/N |
| Moving mass (Mms) | 6.5g |
| Mech. Q factor (Qms) | 3.19 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 9.7 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 5.7Tm |
| Voice coil induct. (Le) | 0.5mH |
| Voice coil diameter | 25.5mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1mm |
| Eff. cone area (Sd) | 80cm2 |
| Magnet weight | 370g |
| Weight | 1.1kg |
Full range speakers, 60WMAX, 8Ω (68X) or 4Ω (64X)
High power capability, drilled pole core, flat wire voice coil, with very good frequency response linearity also in the high frequency range, for general applications.
