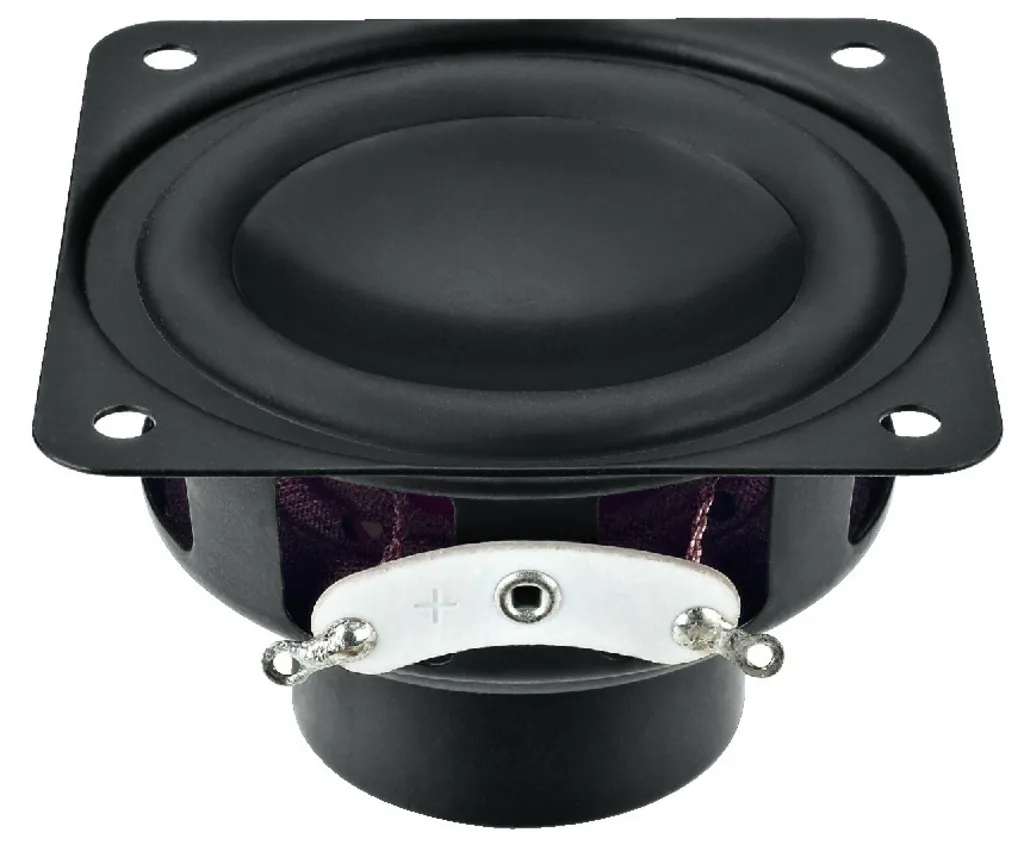

Fuldtone højttaler 2"" 4 Ohm 12W
Varenummer:
125-619
Varekode: SPX-21M
Vægt: 98 g
0 stk.
på lager
| Impedance (Z) | 4Ω |
| Resonant frequency (fs) | 170Hz |
| Max. frequency range | f3-22,000Hz |
| Music power | 25WMAX |
| Power rating (P) | 12WRMS |
| SPL (1W/m) | 84dB |
| Suspension compl. (Cms) | 0.6mm/N |
| Moving mass (Mms) | 1.45g |
| Mech. Q factor (Qms) | 4.66 |
| Electr. Q factor (Qes) | 0.53 |
| Total Q factor (Qts) | 0.47 |
| Equivalent volume (Vas) | 0.14 l |
| DC resistance (Re) | 3.74Ω |
| Force factor (BxL) | 3.32Tm |
| Voice coil induct. (Le) | 0.12mH |
| Voice coil diameter | 20mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.2mm |
| Eff. cone area (Sd) | 13cm2 |
| Magnet weight | 25.8g |
| Weight | 0.09kg |
Hi-fi full range speaker, 25WMAX, 4Ω
- Mini hi-fi full range speaker with a very good sound quality
- Inverse laminated cone and ventilated centering spider
- Neodymium magnetic system
- Voice coil system of very low moving mass
- Application in small speakers or satellite systems
- Ideally suited for line arrays, column speakers
- Combined with bass-midrange speakers, very well-suited as a tweeter system with a low crossover frequency
