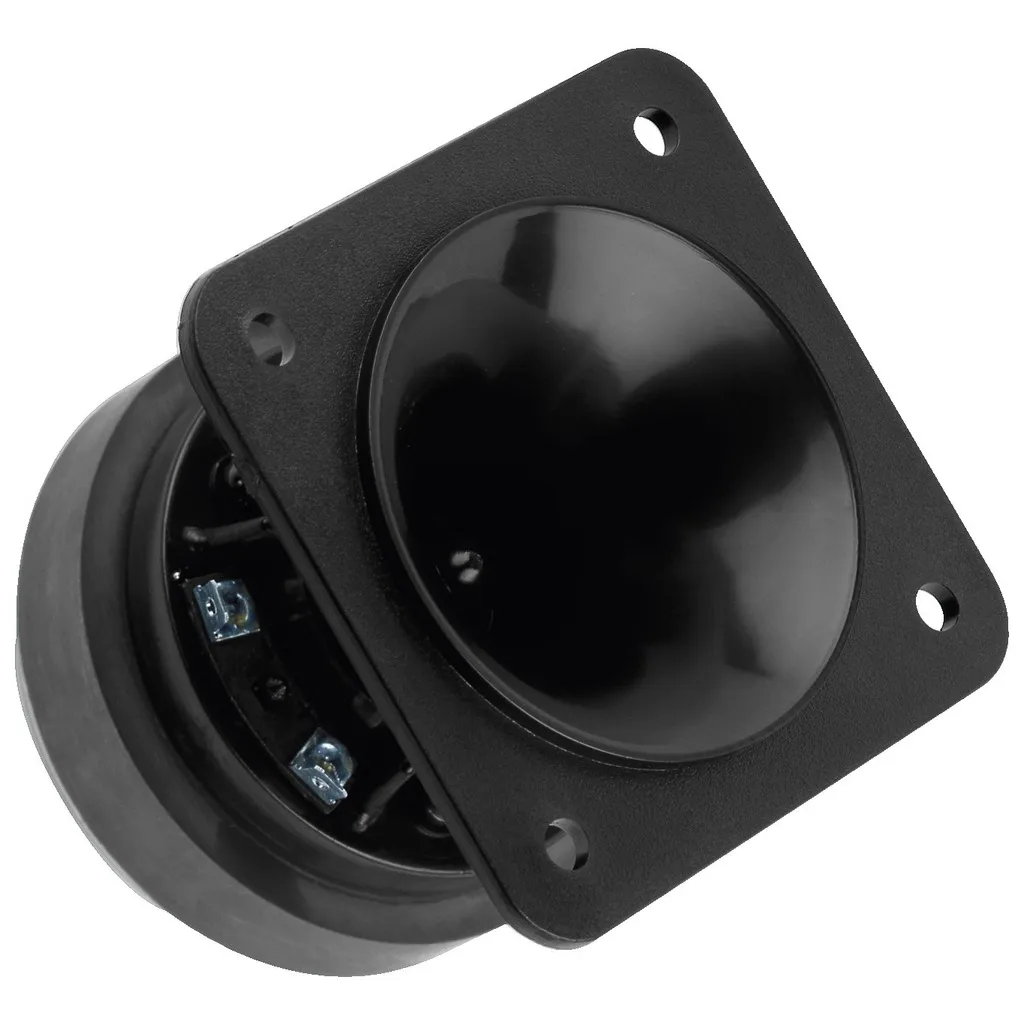

Horn tweeter 8 Ohm 50W
Varenummer:
125-562
Varekode: HT-88
Vægt: 710 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
TEKNISKE DATA:
| Impedance (Z) | 8 Ω |
| Operating voltage | - |
| Frequency range | fx-18 kHz |
| Resonant frequency (fs) | 2.5 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 4 kHz |
| Power rating (PRMS) | 50 W |
| Peak music power output (PMAX) | 100 W |
| Sensitivity | 99 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle | 60°/60° |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |
| Magnet diameter | Ø 80 mm |
| Mounting cutout | Ø 82 mm |
| Mounting depth | 75 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

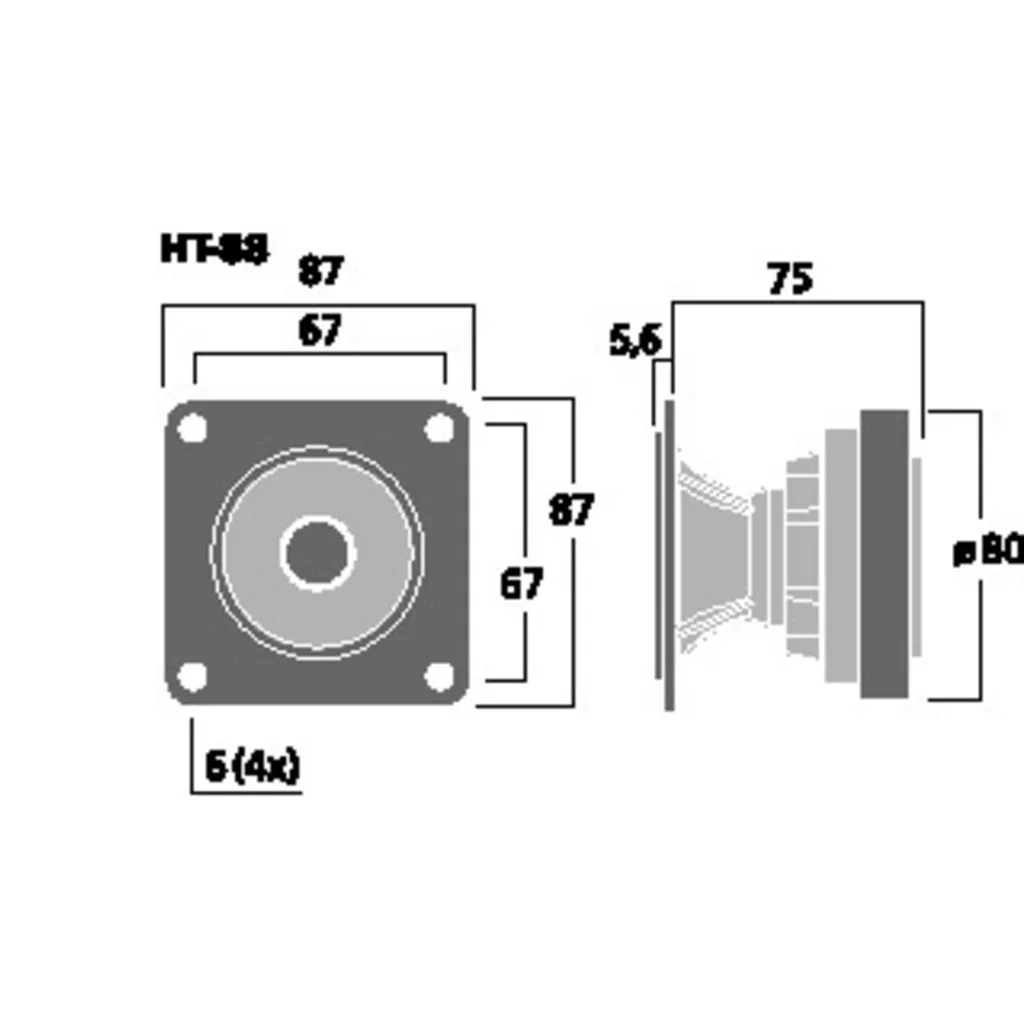

| Dimensions | 87 x 87 x 75 mm |
| Outside diameter | - |
| Width | - |
| Height | - |
| Depth | - |
| Protective class | |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 650 g |
| Sales unit | 1 |
| Type of speaker | |
PA horn diskant, 50 W, 8 Ω
Meget lineære og stor båndbredde stråling
høj effektivitet
Ferrofluid-afkølet og Ferrofluid-fordampede
