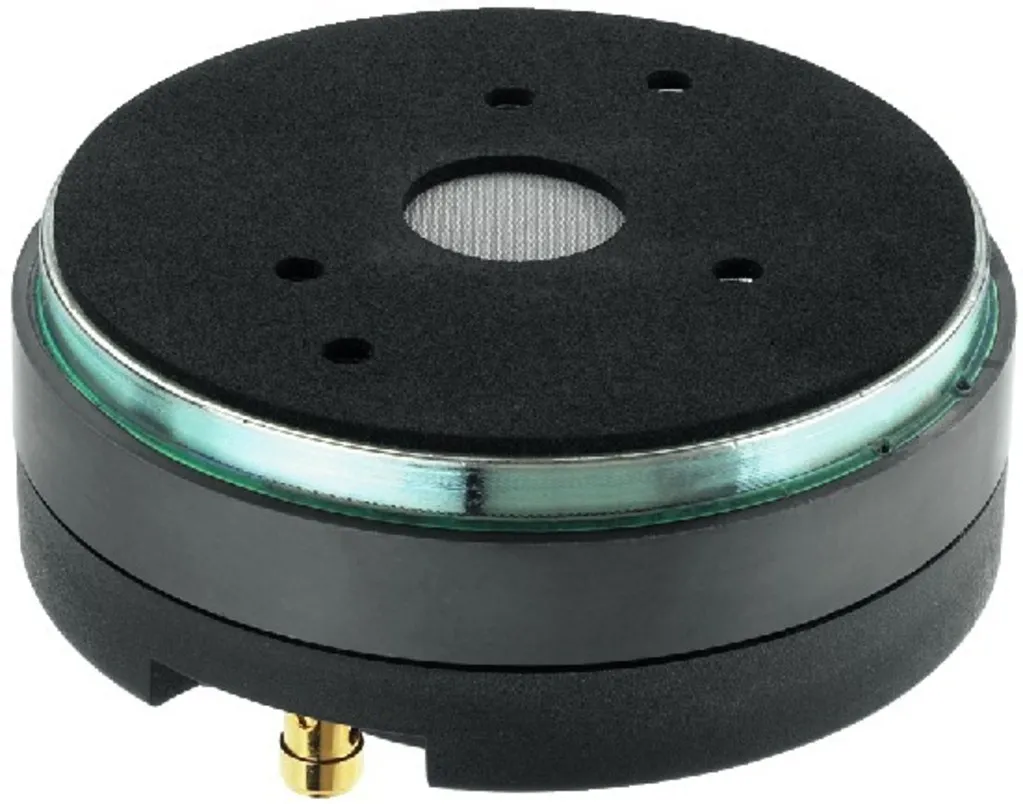

Horn driver, 60W RMS
Varenummer:
125-538
Varekode: MRD-160
Vægt: 1810 g
0 stk.
på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 750Hz |
| Max. frequency range | fx-18,000Hz |
| Rec. crossov. frequ. (fmax.) (12dB/oct.) | 2,000Hz |
| Music power | 150WMAX |
| Power rating (P) | 60WRMS |
| SPL (1W/1m) | 109dB |
| Radiation angle (vert./hor.) | dep. on horn |
| Voice coil diameter | 44.4mm |
| Magnet diameter | 110mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Dimensions | Ø 115mm x 53mm |
| Weight | 1.7kg |
- Top-class 25 mm (1") professional driver
- Reproduction of high efficiency and very linear frequency response
- Of very compact size and high power capability
- For PA speaker systems of high requirements, particularly well-suited in combination with 30 cm and 25 cm (12" and 10") bass speakers
- The replacement voice coil SP-30PAX/VC is available at option
- Suitable for horns MRH-200 and MRH-180
