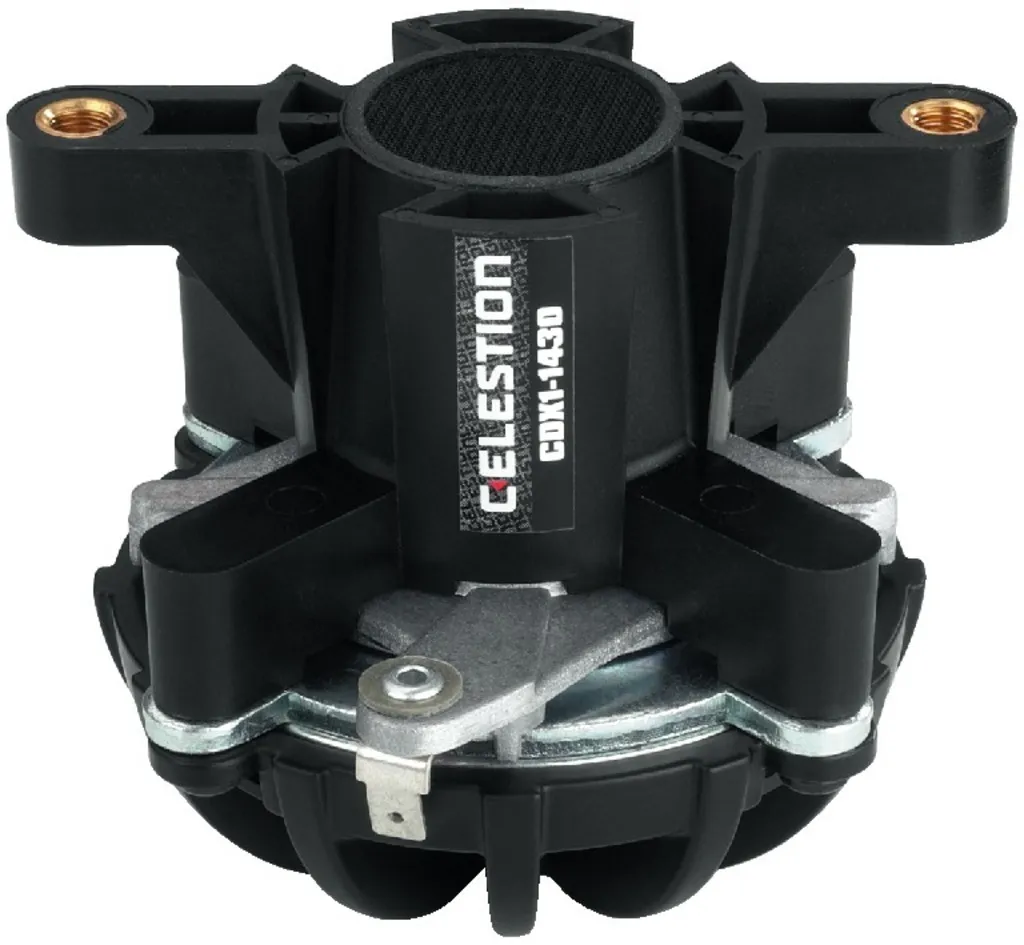

Horn driver
Varenummer:
125-537
Varekode: CDX1-1430
Vægt: 520 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 1,750Hz |
| Max. frequency range | fx-19,000Hz |
| Rec. crossov. frequ. (fmax.) (12dB/oct.) | 3,000Hz |
| Music power | 100WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/1m) | 110dB |
| Radiation angle (vert./hor.) | dep. on horn |
| Voice coil diameter | 34.4mm |
| Magnet diameter | 75mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Dimensions | Ø 75mm x 75mm |
| Weight | 450g |
These midrange speakers and tweeters feature innovative technology, developed by using the latest computer-aided finite element technology. This results in systems featuring a linear frequency response which has mostly been unequalled up to now, a very high efficiency and very good sound characteristics.
PA horn driver, 100 WMAX, 50 WRMS, 8 Ω
- 25 mm (1") horn driver
- Standard 2-screw mounting
- Neodymium drive system with cooling
- Wide and extra linear frequency response
- Very high sound pressure at lowest distortions
- From approx. 3,000 Hz already, this driver provides a very high-quality sound in 2-way arrangements, even with 38 cm (15") bass speakers
- Suitable for the horns MRH-200 and MRH-180
Inkl. moms
Kr. 1199,00
