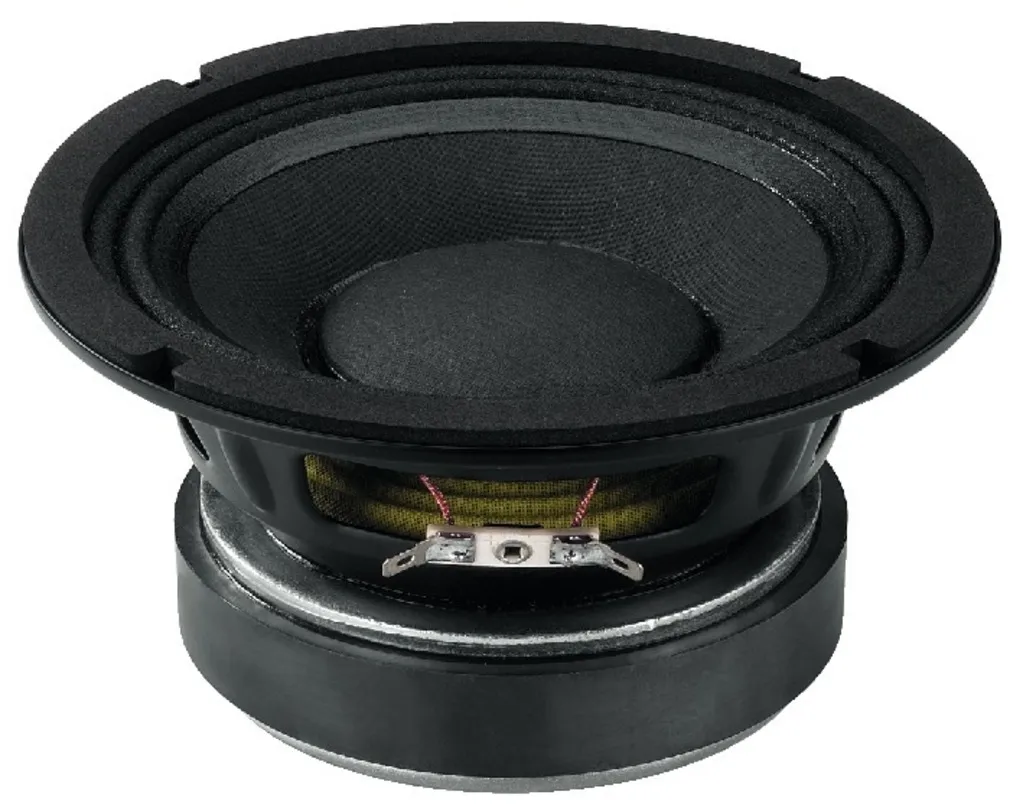

PA-midrange 6,5" 8 Ohm 150W
Varenummer:
125-519
Varekode: SP-6/150PA
Vægt: 2400 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 73Hz |
| Max. frequency range | f3-6,000Hz |
| Music power | 300WMAX |
| Power rating (P) | 150WRMS |
| SPL (1W/m) | 93dB |
| Suspension compl. (Cms) | 0.31mm/N |
| Moving mass (Mms) | 15.2g |
| Mech. Q factor (Qms) | 5.31 |
| Electr. Q factor (Qes) | 0.46 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 8.5 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 9.9Tm |
| Voice coil induct. (Le) | 0.6mH |
| Voice coil diameter | 50mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1mm |
| Eff. cone area (Sd) | 139cm2 |
| Magnet weight | 850g |
| Weight | 2.1kg |
PA midrange speaker, 300 WMAX, 150 WRMS, 8 Ω
- For PA midrange applications of high power rating with the use of mid-high range horns at the same time
- Very well-suited for dual arrangements
Inkl. moms
Kr. 379,00
Produktfiler
PA-midrange 6,5" 8 Ohm 150W
125-519
/ SP-6/150PA
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 73Hz |
| Max. frequency range | f3-6,000Hz |
| Music power | 300WMAX |
| Power rating (P) | 150WRMS |
| SPL (1W/m) | 93dB |
| Suspension compl. (Cms) | 0.31mm/N |
| Moving mass (Mms) | 15.2g |
| Mech. Q factor (Qms) | 5.31 |
| Electr. Q factor (Qes) | 0.46 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 8.5 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 9.9Tm |
| Voice coil induct. (Le) | 0.6mH |
| Voice coil diameter | 50mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1mm |
| Eff. cone area (Sd) | 139cm2 |
| Magnet weight | 850g |
| Weight | 2.1kg |
PA midrange speaker, 300 WMAX, 150 WRMS, 8 Ω
- For PA midrange applications of high power rating with the use of mid-high range horns at the same time
- Very well-suited for dual arrangements
