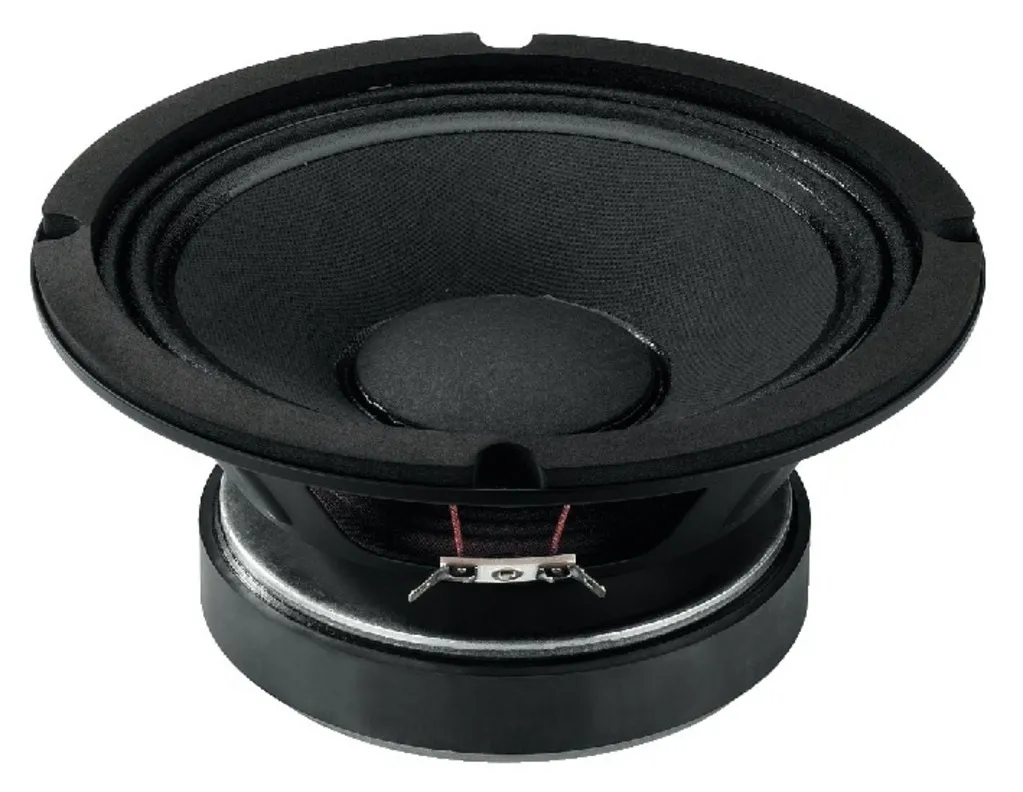

PA-woofer/midrange 8" 8 Ohm 150W
Varenummer:
125-517
Varekode: SP-8/150PA
Vægt: 3300 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 88Hz |
| Max. frequency range | f3-8,000Hz |
| Music power | 300WMAX |
| Power rating (P) | 150WRMS |
| SPL (1W/m) | 96dB |
| Suspension compl. (Cms) | 0.16mm/N |
| Moving mass (Mms) | 20g |
| Mech. Q factor (Qms) | 4.12 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 12 l |
| DC resistance (Re) | 6.9Ω |
| Force factor (BxL) | 12.6Tm |
| Voice coil induct. (Le) | 0.6mH |
| Voice coil diameter | 50mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.25mm |
| Eff. cone area (Sd) | 219cm2 |
| Magnet weight | 1.1kg |
| Weight | 3kg |
PA bass-midrange speaker, 300 WMAX, 150 WRMS, 8 Ω
- Good medium efficiency
- Wide bandwidth radiation for midrange applications
