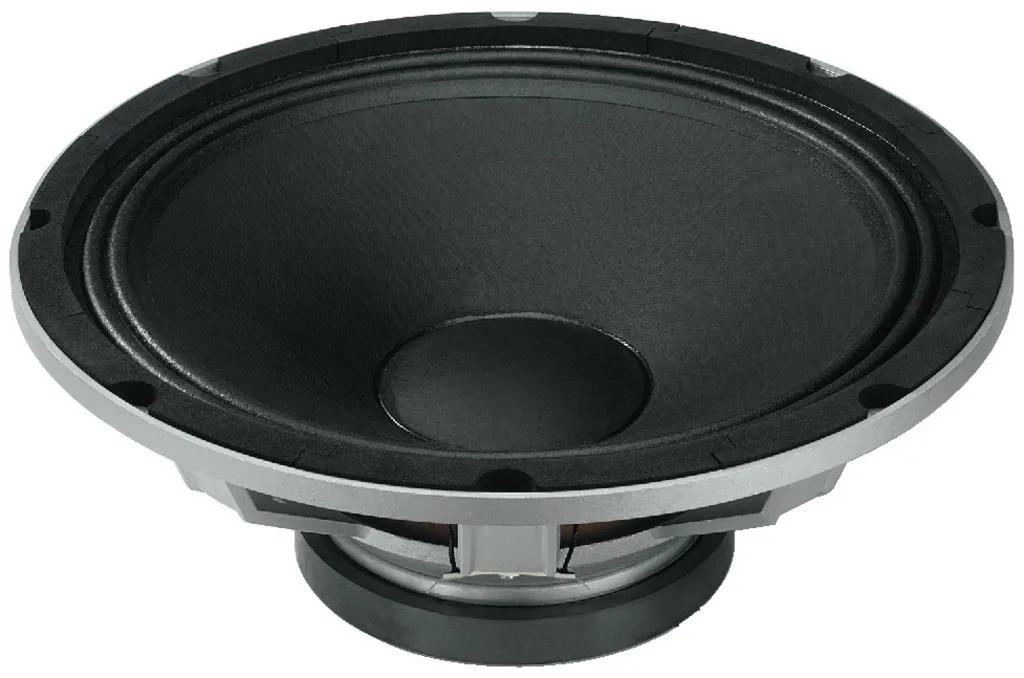

PA-woofer 15" 8 Ohm 250W
Varenummer:
125-506
Varekode: SPA-38PA
Vægt: 6920 g
0 stk.
på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 37Hz |
| Max. frequency range | f3-3,500Hz |
| Rec. crossover freq. (fmax.) | 2,500Hz |
| Music power | 500WMAX |
| Power rating (P) | 250WRMS |
| SPL (1W/1m) | 98dB |
| Suspension compl. (Cms) | 0.22mm/N |
| Moving mass (Mms) | 80g |
| Mech. resistance (Rms) | 7.45kg/s |
| Mech. Q factor (Qms) | 2.54 |
| Electr. Q factor (Qes) | 0.55 |
| Total Q factor (Qts) | 0.46 |
| Equivalent volume (Vas) | 230 l |
| DC resistance (Re) | 6Ω |
| Voice coil induct. (Le) | 1.0mH |
| Voice coil diameter | 65mm |
| Voice coil former | ASV |
| Voice coil winding height | 14mm |
| Air gap height | 8mm |
| Linear excursion (XMAX) | ±3mm |
| Eff. cone area (Sd) | 855cm2 |
| Volume displacement (Vd) | 256cm3 |
| Force factor (BxL) | 14.32Tm |
| Reference efficiency (No) | 2.1% |
| Magnet diameter | Ø 178mm |
| Magnet weight | 1.8kg |
| Mounting cutout | Ø 354mm |
| Mounting depth | 151mm |
| Dimensions | Ø 402mm |
| Weight | 6.0kg |
| Rec. net cabinet volume | |
|
Closed |
120 l |
|
Bass-reflex |
> 150 l |
PA bass speakers and bass-midrange speakers
With diecast aluminium basket and robust paper cone with good inside dampening, high medium sound pressure. Perfectly suitable for semiprofessional multi-purpose PA applications.
PA bass speaker, 500 WMAX, 250 WRMS, 8 Ω
- PA bass speaker with a very wide bandwidth reproduction of high efficiency
- For the combination with 25 mm (1") horns in multi-purpose full range speaker systems
