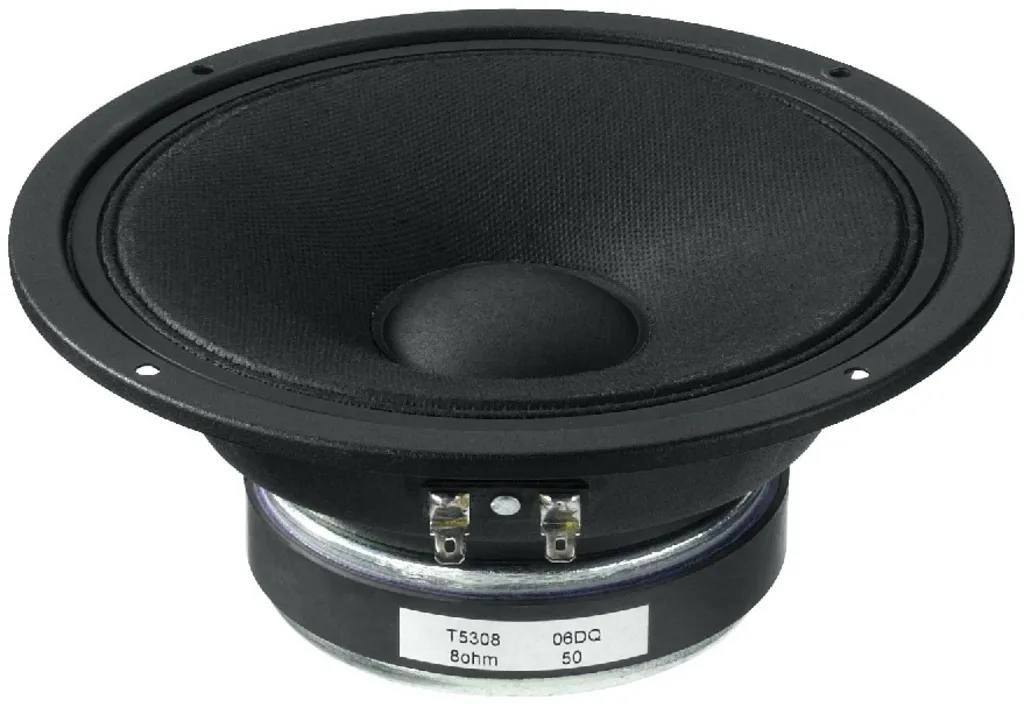

PA-Midrange 6,75" 8 Ohm 50W
Varenummer:
125-503
Varekode: TF-0615MR
Vægt: 1570 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 520Hz |
| Max. frequency range | 800-5,000Hz |
| Music power | 100WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/m) | 98dB |
| Suspension compl. (Cms) | closed |
| Moving mass (Mms) | closed |
| Mech. Q factor (Qms) | closed |
| Electr. Q factor (Qes) | closed |
| Total Q factor (Qts) | closed |
| Equivalent volume (Vas) | closed |
| DC resistance (Re) | 5.7Ω |
| Force factor (BxL) | closed |
| Voice coil induct. (Le) | 0.8mH |
| Voice coil diameter | Ø 38mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1mm |
| Eff. cone area (Sd) | 169cm2 |
| Magnet weight | 480g |
| Weight | 1.4kg |
CELESTION
One of the most appealing names in the world of speakers. The speakers of the TF series impress by both an excellent price-performance ratio and very good sound characteristics and thus are ideally suited for an application in efficient PA speaker systems providing a powerful sound.
PA midrange speaker, 100WMAX, 50WRMS, 8Ω
- 18cm (6 3/4") compact PA midrange speaker with closed sheet steel basket, very high efficiency
- Easy installation, no extra cabinet volume required
- High-quality Kevlar fibre reinforced cellulose cone
- Very linear frequency response
- Heat-resistant 38mm (1.5") voice coil on a Kapton voice coil former
- With impedance linearisation, can be used from approx. 800Hz on, otherwise 1,000-5,000Hz
- Ideally suited for multi-way PA speaker systems
Inkl. moms
Kr. 399,00
