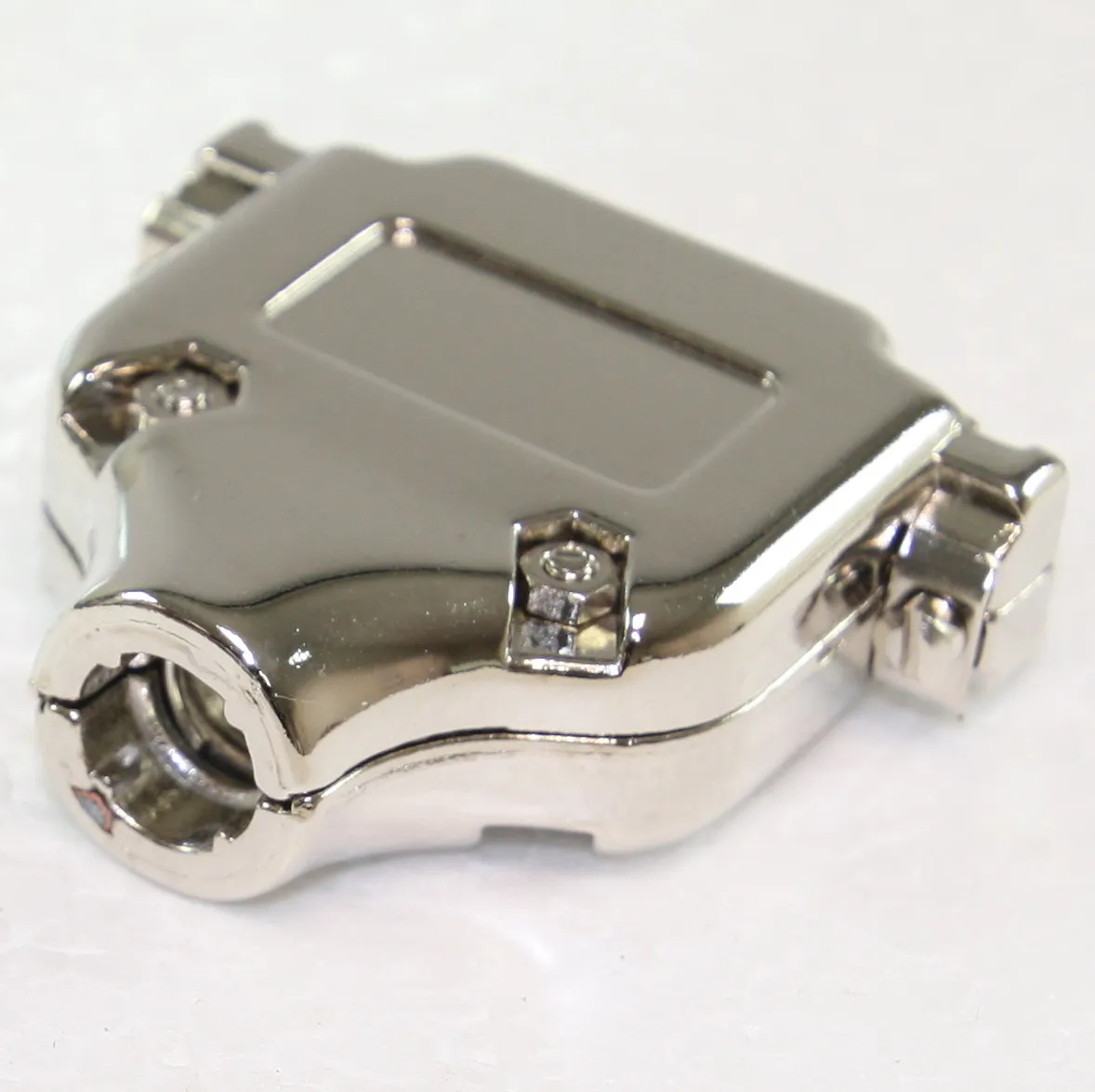

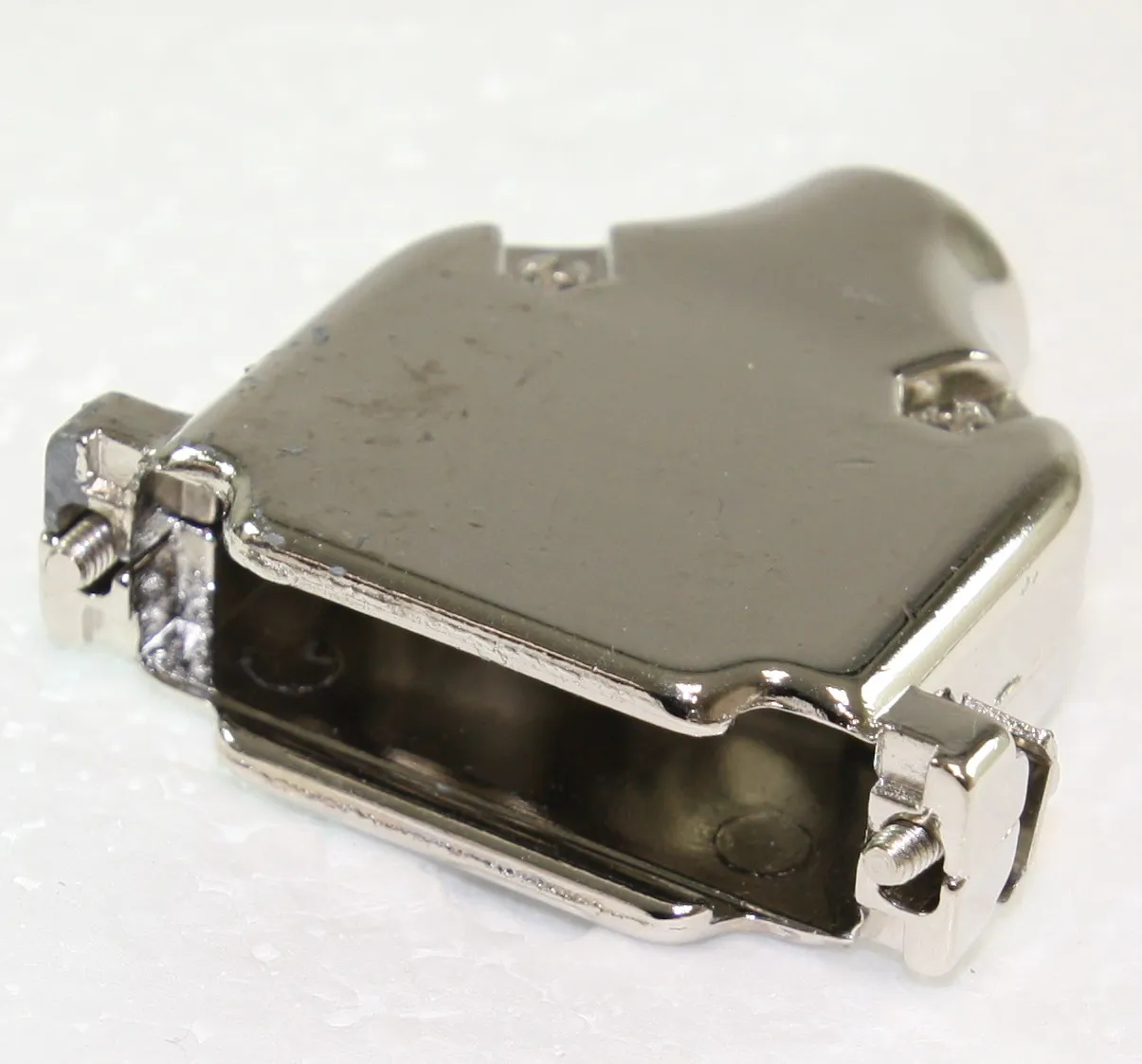

Metal-D-Sub-Hood 19-Pole
Varenummer:
125-323
Varekode: CME19G
99 stk.
på lager
Gruppe: F4785
D-Sub Metal Backshells
Series: CME_G
Low Cost, Straight Cable Exit
| Features |
| • EMV complete metal hood for D-Sub connectors • Retaining screws UNC4-40 • Zinc die casting with silver surface |
 |
| Dimensions |
| Part Nr. | Nr. of Poles | A | B | C | D | E | [mm] | [mm] | [mm] | [mm] | [mm] | CME09G | 09 | 31,4 | 25,0 | 48,2 | 19,8 | 12,3 | CME15G | 15 | 40,1 | 33,3 | 48,3 | 27,5 | 15,9 | CME25G | 25 | 53,4 | 47,0 | 48,5 | 41,5 | 15,7 | CME37G | 37 | 69,2 | 63,5 | 48,6 | 57,2 | 20,8 | |||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Delivery contents: supplied with screws Articles in bold print in stock, other articles up to 200 pieces available on request, delivery time approx. 4 weeks. |
|
| Manufacturer |
| Various |
|
