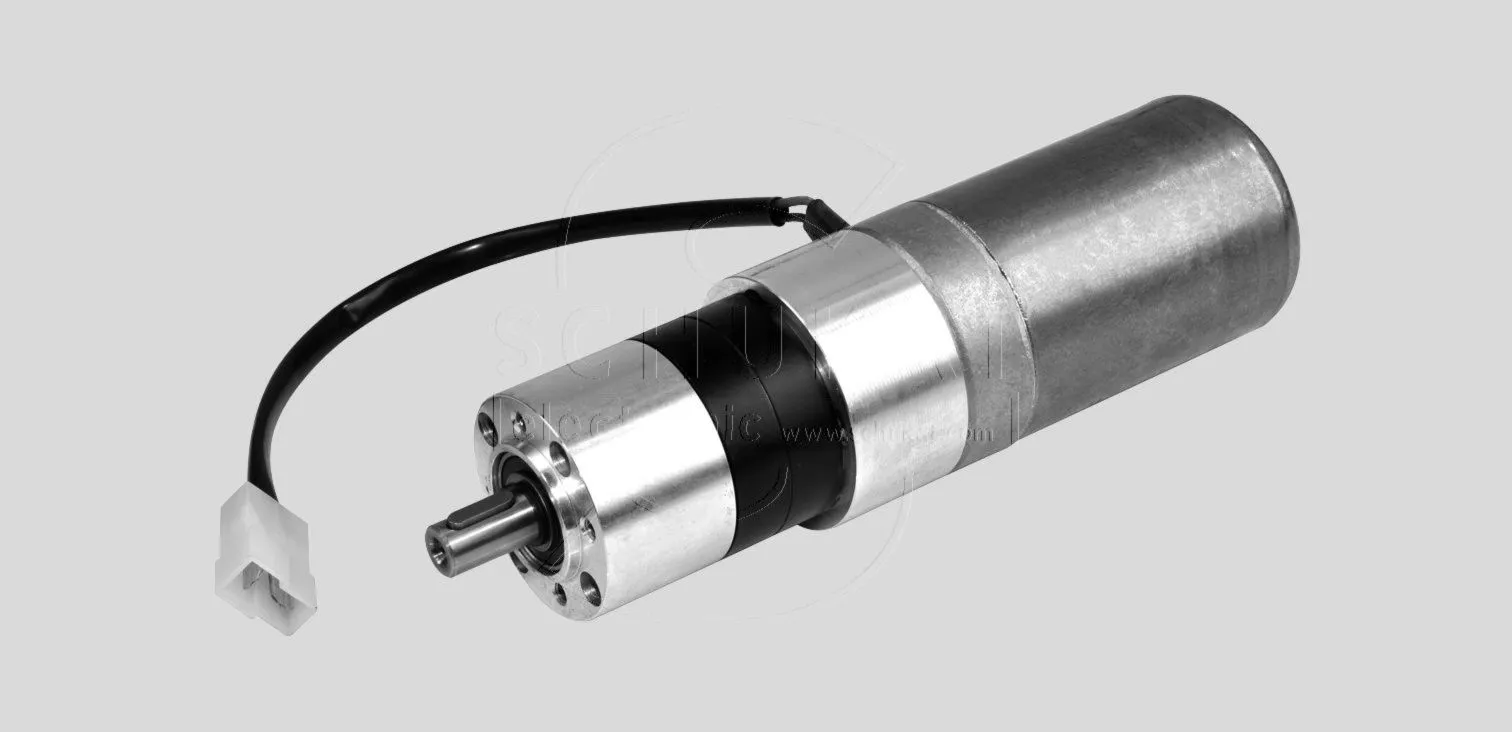

DC Geared Motors Series 162 16:1 24V 188RPM
Varenummer:
124-955
Varekode: 162.9004.3B.00
Vægt: 2100 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 10/10
Gruppe: P3520
DOGA DC Geared Motors
with Planetary Gear
Series: 162
DOGA DC Geared Motors
with Planetary Gear
Series: 162
| Features |
| • Long lifetime • High reliability • Compact design • High peak loads • IP53 protection |
 |
| Technical Specifications |
| Part Nr. | UN | IN | MN | IA | MA | N | Gewicht |
| 162_ | [V] | [A] | [Nm] | [A] | [Nm] | [rpm] | [kg] |
| 9003.3B.00 | 24 | 4 | 0,8 | 18 | 3 | 750 | 1,9 |
| 9004.3B.00 | 24 | 4 | 3,2 | 18 | 11 | 188 | 2,1 |
| 9005.3B.00 | 24 | 4 | 7,2 | 18 | 25 | 84 | 2,1 |
| 9006.3B.00 | 24 | 4 | 32,4 | 18 | 105 | 18 | 2,3 |
| UN = Rated Voltage, IN = Rated Current, MN = Rated Torque, IA = Starting Current, MA = Starting Torque, N = NO-Load-Speed, Weight | |||||||
| |||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.doga.es/ |
|
Inkl. moms
Kr. 4385,81
