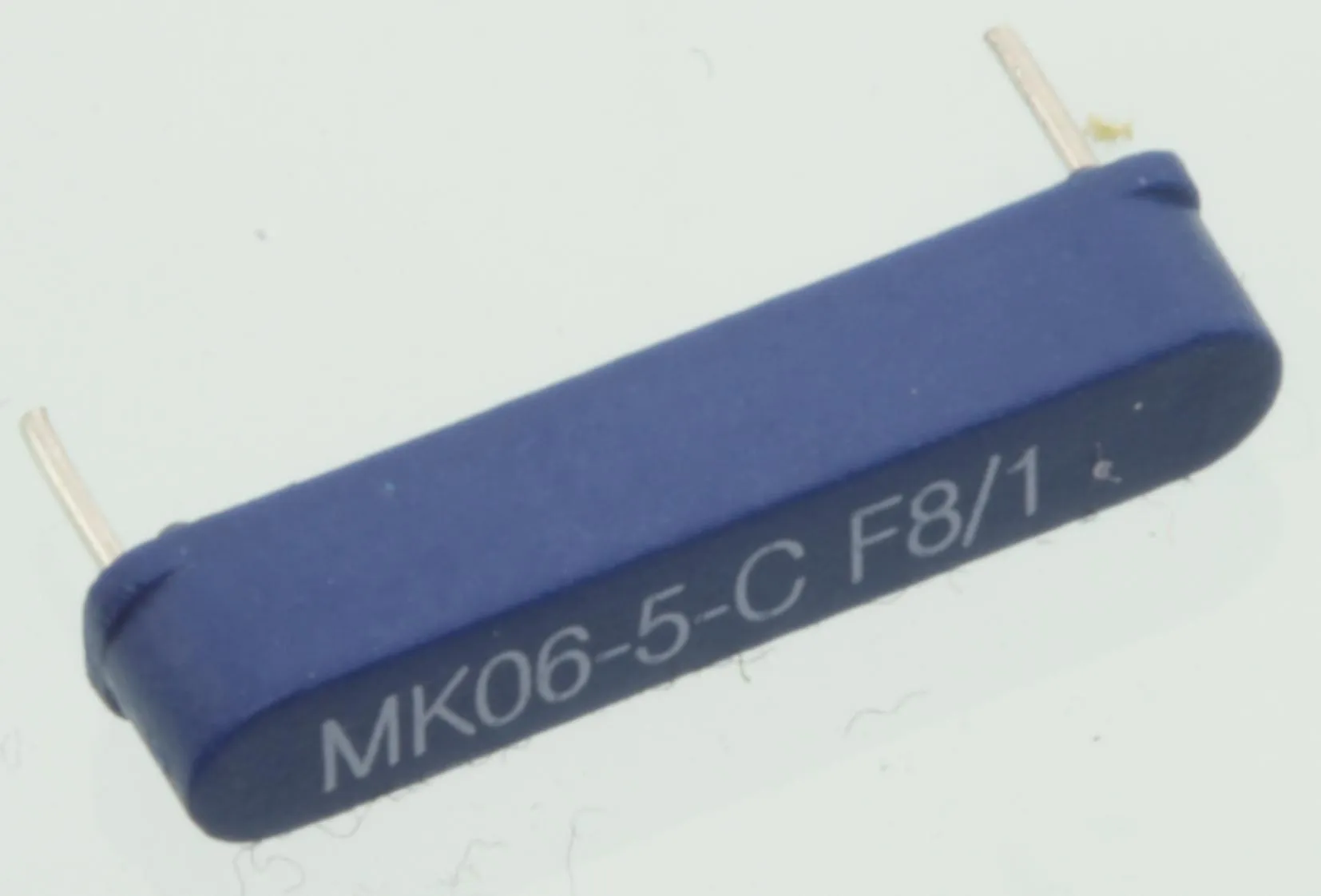

Reed Sensor SPST NO 0,5A 1W PC 15-20AT magnetkontakt
Varenummer:
124-942
Varekode: MK06-5-C
Vægt: 0 g
26 stk.
på lager
Gruppe: E4211
MEDER Reed Sensors
Series: MK
Contact: SPST-NO
| Features |
| • Sensors from the MK- series are magnetically operated reed proximity switches for direct PCB mounting. The sensor should be mounted onto a fixed surface with the actuating magnet on the moving surface. • The reed switch and permanent magnet must remain at a certain distance apart. Approximation resp. removal of the magnetic field determines the closing and opening of the Reed switch. • The magnetic operate sensitivities are divided into different AW classes. • The contact is made of ferromagnetic reeds which are melted within a gas-proof glass tube. • The parallel ends overlap each other to form a magnetic gap. • Due to a magnetic field the contact paddles take opposite polarity and close with sufficient strength. |
 |
| Application |
| • Keyboard applications • Lever hoists MK06-5-C, MK67B and MK67C as well as: • Telecommunications • Door switches for domestic appliances • Limit switch for low-power signals • Position indicators in lifts/elevators |
|
| Structure |
| • MK06-5-C: Case switch for direct PCB mounting, P = 12,7mm, 1 contact • MK67_: Case switch for direct PCB mounting, P = 17,78mm, 1 contact • MK471B: Sensor with assembly holes for screw attachment, 1 contact, with 500mm long connection cable (flat, twin cable, 2x0,14mm²), cable end cut, 5mm stripped and tinned |
|
| Technical Specifications |
| Artikel | PS | US | IS | IT | RK | UD | AE | AEK | MK_ | [W] | [V DC] | [A] | [A] | [mW] | [V DC] | [AT] | [AT] | 06-5-C | 1 | 200 | 0,5 | 0,3 | 150 | 230 | 15...20 | 10,8...18,3 | 67B | 10 | 180 | 0,5 | 1,5 | 150 | 225 | - | 5,5...10,4 | 67C | 10 | 180 | 0,5 | 1,5 | 150 | 225 | 15...20 | 8...15,5 | 471B | 10 | 180 | 0,5 | 1,25 | 150 | 225 | 10...15 | 23...44 | |||||||||
| PS = Switching Capacity, Max., US = Switching Voltage, Max. , IS = Switching Current, Max., IT = Carry Current, Max., RK = Contact Resistance, Max., UD = Breakdown Voltage, Min., AE = Initial Excitation (Reference Value), AEK = Initial Excitation (Assembled) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable operating magnets in product groups E4311 and E4321. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Articles in bold print in stock, ther articles of 1000 pieces available on request, delivery time approx. 6 weeks. |
|
| Manufacturer |
 |
| http://www.meder.com |
|
