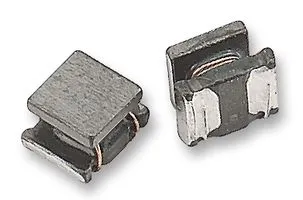

INDUCTOR, 1210 CASE, 1.0UH
Varenummer:
124-861
Varekode: LQH32CN1R0M33L
10 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Specifikationer
| Induktans | 10 µH |
|---|
- INDUCTOR, 1210 CASE, 1.0UH
- Product Range: MURATA - LQH Series Chip Inductors
- Inductance: 1µH
- Inductance Tolerance: ± 20%
- DC Resistance Max: 0.06ohm
- Q Factor: 20
- DC Current Rating: 1000mA
- Self Resonant Frequency: 100MHz
- Inductor Case Style: 1210 [3225 Metric]
- No. of Pins: 2
- Core Material: Ferrite
- SVHC: No SVHC (18-Jun-2012)
- External Depth: 2mm
- External Length / Height: 3.2mm
- External Width: 2.5mm
- Inductor Type: Wirewound
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Resonant Frequency: 100MHz
- Test Frequency: 1MHz
Inkl. moms
Kr. 8,06
Produktfiler
INDUCTOR, 1210 CASE, 1.0UH
124-861
/ LQH32CN1R0M33L
10 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Kontakt os for at få oplyst leveringstid
Specifikationer
- Induktans 10 µH
- INDUCTOR, 1210 CASE, 1.0UH
- Product Range: MURATA - LQH Series Chip Inductors
- Inductance: 1µH
- Inductance Tolerance: ± 20%
- DC Resistance Max: 0.06ohm
- Q Factor: 20
- DC Current Rating: 1000mA
- Self Resonant Frequency: 100MHz
- Inductor Case Style: 1210 [3225 Metric]
- No. of Pins: 2
- Core Material: Ferrite
- SVHC: No SVHC (18-Jun-2012)
- External Depth: 2mm
- External Length / Height: 3.2mm
- External Width: 2.5mm
- Inductor Type: Wirewound
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Resonant Frequency: 100MHz
- Test Frequency: 1MHz
Produktfiler
