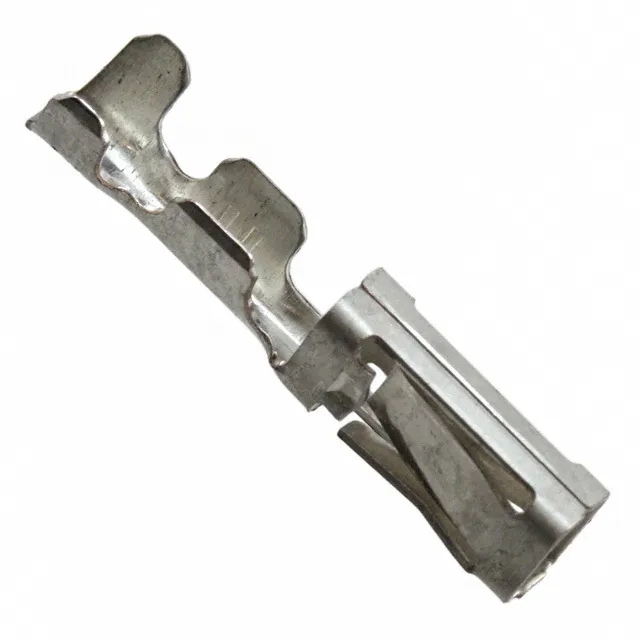

Crimp ben til AMPMODU I serie, Tin, 22-18AWG
Varenummer:
124-217
Varekode: AMP181299-1
871 stk.
på lager
- CONTACT, TIN, 22-18AWG
- Series: AMPMODU
- For Use With: AMPMODU Connectors
- Contact Gender: Socket
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Contact Termination: Crimp
- Cable Diameter Max: 2.3mm
- Cable Diameter Min: 1.8mm
- Connector Type: Wire to Board
- Contact Resistance: 12mohm
- Contact Size: 18
- Current Rating: 5A
- De-mating Force: 0.83N
- Gender: Receptacle
- Mating Force: 8.34N
- Operating Temperature Max: 60°C
- Operating Temperature Min: -65°C
- Strip Length: 60mm
- Termination Method: Crimp
- Wire Area Size Max: 0.9mm²
- Wire Area Size Min: 0.32mm²
- Wire Size: 18AWG
- Wire Size AWG Max: 18AWG
- Wire Size AWG Min: 22AWG
