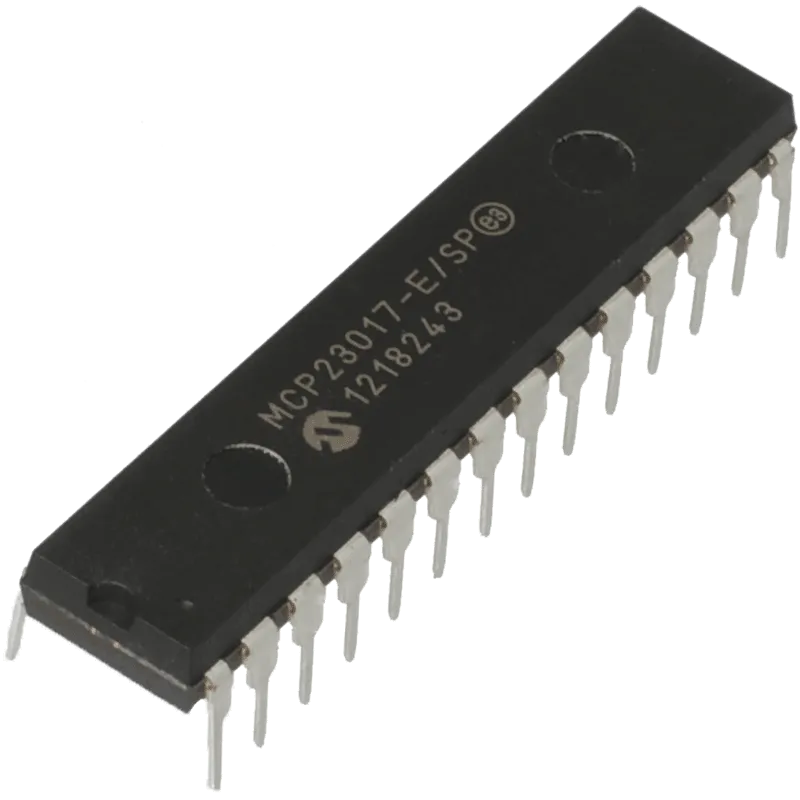

MICROCHIP 16BIT EXPANDER, I/O, I2C I/F, DIP-28
Varenummer:
123-728
Varekode: MCP23017-E/SP
Vægt: 5 g
22 stk.
på lager
- 16BIT EXPANDER, I/O, I2C I/F, DIP28
- Bus Frequency: 1.7MHz
- Interface Type: I2C, Serial
- Supply Voltage Range: 4.5V to 5.5V
- Digital IC Case Style: DIP
- No. of Pins: 28
- No. of I/O's: 16
- SVHC: No SVHC (18-Jun-2012)
- Base Number: 23017
- Communication Function: I/O Expander
- Control Interface: I2C
- Data Rate Max: 1.7Mbps
- IC Function: 16bit I/O Expander with Serial Interface
- No. of Bits: 16
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Package / Case: DIP
- Supply Current: 1mA
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 4.5V
- Termination Type: Through Hole
- en stang = 15 stk
Produktfiler
