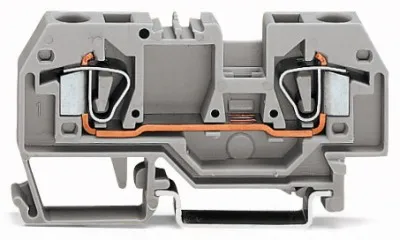

WAGO - TERMINAL BLOCK, DIN, 41A, GREY
Varenummer:
123-430
Varekode: 282-901
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
- TERMINAL BLOCK, DIN, 41A, GREY
- Connector Type: Terminal Block, DIN Rail
- Connector Mounting: DIN Rail
- Pitch Spacing: 8mm
- No. of Contacts: 1
- Wire Size (AWG): 24AWG to 10AWG
- Contact Material: Steel
- SVHC: No SVHC (18-Jun-2012)
- Colour: Grey
- Connector Mounting Orientation: DIN Rail
- Current Rating: 41A
- External Width: 8mm
- No. of Poles: 1
- No. of Ways: 1
- Terminal Type: Cage Clamp
- Voltage Rating V AC: 800V
- Wire Area Size Max: 6mm²
- Wire Area Size Min: 0.2mm²
- Wire Size AWG Max: 10AWG
- Wire Size AWG Min: 24AWG
- Wire Size Range (AWG): 24-10
- Working Voltage: 800V
Inkl. moms
Kr. 50,00
- v/10 – Kr. 33,75
- v/100 – Kr. 27,50
