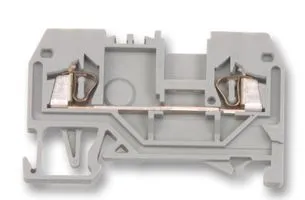

WAGO - TERMINAL BLOCK, DIN, 32A, GREY
Varenummer:
123-429
Varekode: 281-901
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
- TERMINAL BLOCK, DIN, 32A, GREY
- Connector Type: Terminal Block, DIN Rail
- Connector Mounting: DIN Rail
- Pitch Spacing: 6mm
- No. of Contacts: 1
- Wire Size (AWG): 28AWG to 12AWG
- Contact Material: Steel
- SVHC: No SVHC (18-Jun-2012)
- Colour: Grey
- Connector Mounting Orientation: DIN Rail
- Current Rating: 32A
- External Width: 6mm
- No. of Poles: 1
- No. of Ways: 1
- Terminal Type: Cage Clamp
- Voltage Rating V AC: 800V
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 0.08mm²
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 28AWG
- Wire Size Range (AWG): 28-12
- Working Voltage: 800V
Inkl. moms
Kr. 36,90
- v/10 – Kr. 25,00
- v/100 – Kr. 20,00
