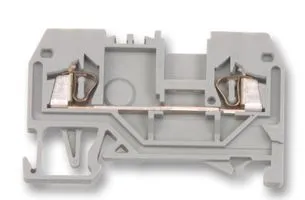

WAGO - TERMINAL BLOCK, DIN, 18A, GREY
Varenummer:
123-427
Varekode: 279-901
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
- TERMINAL BLOCK, DIN, 18A, GREY
- Connector Type: Terminal Block, DIN Rail
- Series: 279
- Connector Mounting: DIN Rail
- Pitch Spacing: 4mm
- No. of Contacts: 2
- Wire Size (AWG): 28AWG to 16AWG
- SVHC: No SVHC (18-Jun-2012)
- Colour: Grey
- Current Rating: 18A
- External Width: 4mm
- No. of Poles: 1
- No. of Ways: 1
- Terminal Type: Cage Clamp
- Voltage Rating V AC: 800V
- Wire Area Size Max: 1.5mm²
- Wire Area Size Min: 0.08mm²
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 28AWG
- Wire Size Range (AWG): 28-16
- Working Voltage: 800V
Inkl. moms
Kr. 28,75
- v/10 – Kr. 20,00
- v/100 – Kr. 15,00
Produktfiler
